Hyundai Upgraded R35Z-9A Compact Excavator

Among new standard features are a Werk Brau-compatible thumb bracket, a diverter valve for easy switching between a thumb or attachment and proportional control levers with two-way piping

Hyundai R35 Z 9 A 2018 Upgrades
5262d1c3

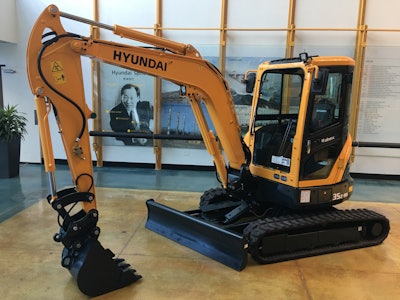

Hyundai Construction Equipment Americas announced a variety of improvements to its 3 1/2-ton class R35Z-9A zero tailswing compact excavator. One of seven 9A series models, the R35Z-9A compact excavator was introduced to the market in 2015.

  • Maximum digging depth of 10 ft. 3 in., bucket breakout force of 6,900 lbf. and standard bucket capacity of 0.14 cu. yds.
  • 23.7-hp Yanmar engine housed in a wider opening engine compartment
  • Boom swing capability allows boom offset of 75° to the left and 50° to the right for close work alongside foundations and other structures

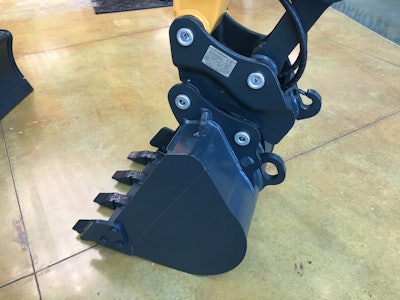

  • Hyundai R35 Z 9 A Quick CouplerStandard Werk Brau-compatible thumb bracket, diverter valve for easy switching between a thumb or attachment, proportional control levers with two-way piping and pin-grabber style dual-locking quick coupler and O/C piping
  • Enhanced bucket design with lifting-eye and two-piece tooth design for easy replacement
  • Dozer blade includes an increased curve profile for better grade and cutting ability and easily replaceable cutting edge
  • Durable centered boom LED work light for improved jobsite illumination
  • Large cab with air conditioning, suspension seat and fold-up travel pedals for enhanced floor space
  • Optional four-way angle dozer blade
