Case Upgrades F Series Compact Loaders with Electrohydraulic Controls

Four compact wheel loaders under 75 hp offer a maintenance-free Tier 4 Final solution, increased breakout force and added hydraulic power

Caseconstructionequipment 10072354

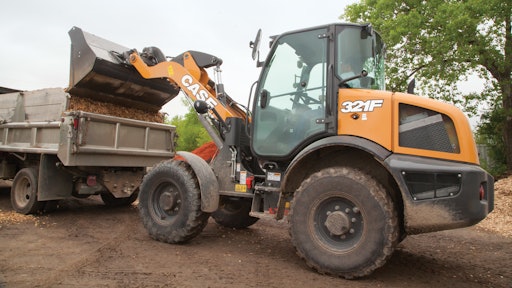

Case's F Series compact wheel loaders feature adjustable electrohydraulic controls for advanced bucket lift and tilt functionality, upgraded inching pedal and bucket metering for customizable machine response and precision control.

  • Models include: 58-hp 21F, 64-hp 121F, 74-hp 221F and 74-hp 321F
  • 11,272- to 13,303-lb. operating weights and lift capacities from 5,265 to 8,354 lbs.
  • Bucket metering provides more precise and consistent movement of bucket edge while metering or sifting material
  • E-inching pedal uses electronically-controlled inching valve to provide greater response and control
  • Feature a “maintenance-free” Tier 4 Final particulate matter catalyst solution and cooled exhaust gas recirculation engine
  • 21F and 121F available in Z-bar and parallel lift arm configurations
  • 3-way rocker switches (high, medium, low) mounted on side console adjust responsiveness of loader lift arms independently of attachment tilt functions
  • 4- to 6-in. shorter wheelbase provides a smaller turning radius
  • Up to 13-in. lower cab height
  • Automatic Ride Control feature engages at higher ground speeds to retain bucket load
  • Standard auxiliary hydraulics or a high-flow option on the 221F and 321F
  • ROPS/FOPS-compliant open canopy option

[VIDEO] New CASE Compact Wheel Loader Electro-Hydraulic Controls
