Caterpillar M Series Compact Wheel Loaders

Compact models offer operators adjustable control response for efficient work

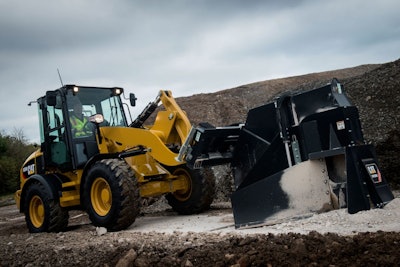

Caterpillar 908M 56bd025aec85f
Caterpill 10210679

The 12,412-lb. 906M, 12,809-lb. 907M and 14,253-lb. 908M feature Optimized Z-bar loader linkage, which combines aggressive digging power with parallel lift. Their 75-gross-hp Cat C3.3B transversely mounted engine includes an electronically controlled hydrostatic drive system and exhaust aftertreatment with diesel particulate filter to meet Tier 4 Final standards.

  • Electrohydraulic controls allow for engineering enhancements for the drive system, implement controls, auxiliary hydraulic system and loader linkage
  • Single-plane coolers use a hydraulically driven fan or optional Cat Demand Fan that operates at maximum speed only when required
  • ECO mode regulates the engine’s high idle while maintaining full rimpull and breakout force capability
  • Cat Hystat system can achieve up to a 22-mph top speed
  • Optional stop-to-shift transmission
  • Deluxe cab with two side-entry doors, low-effort electrohydraulic joystick, suspended pedals, tilt steering wheel, air-suspended and heated seat and optional security keypad
  • Multi-function loader-control joystick incorporates transmission and differential-lock controls plus proportional control of auxiliary circuits
  • Skid Steer Loader-style coupler or Cat coupler options
  • Optional Road Feature Package with Ride Control system, Creeper Control, electronic throttle lock and Implement-Modulation System
  • Optional Load Feature Package includes the electronic throttle lock, Implement-Modulation System, Hystat Aggressiveness Control, Rimpull Control and Return to Dig

Spec Sheet: Caterpillar 906M Compact Wheel Loader

Spec Sheet: Caterpillar 907M Compact Wheel Loader

Spec Sheet: Caterpillar 908M Compact Wheel Loader
