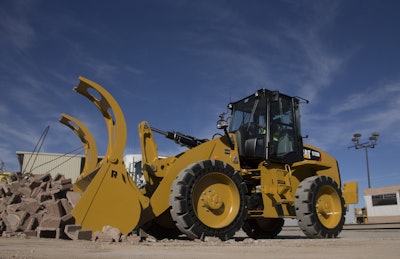

Caterpillar M-Series Compact Wheel Loaders

The 17,888-lb. 910M, 19,309-lb. 914M and the all-new 20,917-lb. 918M compact wheel loaders offer engineering refinements that include a new, larger-displacement engine that meets Tier 4 Final emissions standards without a diesel particulate filter (DPF), as well as new options and features that further enhance value, operator comfort and safety.

• Cat C4.4 ACERT engine features standard ECO mode, auto-engine-idle shutdown and available on-demand cooling fan
• 115-gross-hp 918M features an available high-flow auxiliary-hydraulic system, standard heavy-duty axles and a 25-mph high-speed option
• 99-gross-hp 910M and 914M feature an intelligent power-management system with on-demand power adjustment
• 10,914- to 12,520-lb. full-turn static tipping load
• Optimized Z-bar loader linkage combines the digging performance and high breakout forces of conventional Z-bar linkage and the parallel-lift and load-handling capability of a tool carrier
• Includes the Implement-Modulation system, Hystat Aggressiveness Control, Return-To-Dig, Lift Kickout, Rimpull Control, variable-speed Creeper Control and optional Ride Control system
• Deluxe cab features two side-entry doors, low-effort electrohydraulic joystick, suspended pedals, tilt steering wheel and an air-suspended/heated seat
• Multi-function, loader-control joystick provides easy, single-lever control of loading functions, as well as transmission and differential lock controls
• Available with an Integrated Tool Carrier coupler or Cat ISO coupler
• Optional LED light package with front and rear LED auxiliary work lights and an optional rearview camera
