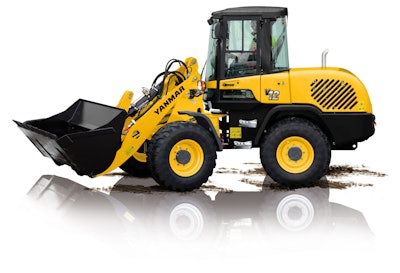

Yanmar's V12 compact wheel loader features the same central pivot with floating axle as the larger wheel loaders have as well as automatic self-locking differentials in both axles.
- 100-hp Deutz four-cylinder, turbo diesel, Tier 4 Final engine
- Hydrostatic powershift transmission provides two speed ranges with infinitely variable speed control in forward and reverse
- Oscillating rear axle
- Hydraulic ISO-style or hydraulic Schaeff-style coupler
- Cab features two doors, responsive steering and maximum visibility
- Easy-handling joystick with third and fourth control circuit in one hand
- Yanmar Smart Control (TSC)
- Operating weight: 15,432 lb.
- Bucket capacity: 1.57 to 2.35 cu. yd.
- Bucket digging force: 13,264lbf.
- Lift capacity at ground level: 15,962 lbs.
- Tipping load: 11, 023 lb. (straight); 9,700 lb. (articulated)
