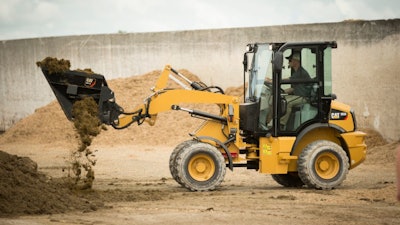

The 903D compact wheel loader features a 25% increase in both lifting capacity and travel speed compared with its 903C2 predecessor. With optional features, such as creep control, throttle lock and work tool electrical harness, the 903D has the ability to run a variety of tools.
- Z-bar loader linkage with boom-float and return-to-dig functions
- Standard-lift arms or high-lift boom arms that increase hinge pin height from 10 ft. 1 in. to 10 ft. 7 in.
- Includes a 40-net-hp CAT C2.4 Tier 4 Final engine, hydrostatic transmission that provides travel speeds to 12.4 mph and planetary reduction axles with optional differential locks
- Auxiliary (third-function) hydraulic system delivers a flow of up to 14 gpm at pressures to 3,481 psi
- Standard universal coupler; electrically activated coupler available
- Available with open or enclosed cab
- Operator's station features a refined ergonomic design with a multi-function joystick for fingertip control of the standard third-function hydraulic system
- Fully opening rear hood allows ready access to the engine compartment, which features side-by-side coolers and transparent fuel/water separator
[VIDEO] Caterpillar 903D Compact Wheel Loader Overview
