Compact Radius Tier 4 Interim Excavators

33,000- and 52,000-lb. excavators get customizable cabs with emissions-compliant engines

R235LCR-9A
R235LCR-9A
Hd Full Color 1

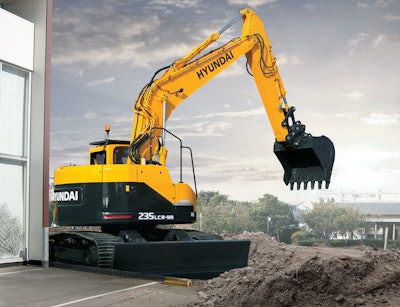

The R145LCR-9A and R235LCR-9A compact radius crawler excavators are ideal for small to mid-size excavating projects, demolition, and road and utility work in confined spaces.

  • R145LCR-9A: 116-hp Perkins 1204E Tier 4 Interim/Stage IIIB engine; R235LCR-9A: 157-hp Cummins QSB6.7 Tier 4 Interim/Stage IIIB engine
  • Choose between three engine modes: power, standard and economy
  • Fully customizable cab with enhanced visibility features
  • Color LCD display cluster with digital gauges that montior temperature, fuel levels and other maintenance items
  • Hi-mate Remote Management System
  • Operating weight: 33,020 lbs (R145LCR-9A) and 52,470 lbs. (R235LCR-9A)
  • Digging force: 12,300 lbf. (R145LCR-9A) and 32,550 lbf. (R235LCR-9A)
