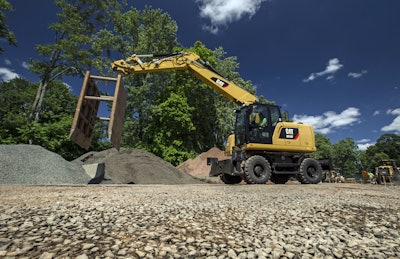

Caterpillar M314F, M316F and M322F Wheeled Excavators

The M314F, M316F and M322F wheeled excavators feature a dedicated swing pump, hydraulically driven cooling fan, large working envelope, added stability and a range of configurations and attachments.

• Include the Smartboom, ride control, joystick steering and load-sensing hydraulics
• 141-hp C4.4 ACERT (M314F and M316F) or 169-net-hp C7.1 ACERT (M322F) Tier 4 Final engine with engine-idle-shutdown system and Eco Mode
• Offer operating weights from 31,658 to 54,450 lbs. and travel speeds from 18.6 to 23 mph
• Automatic axle-oscillation and service brake locking function
• Travel-lock system combines implement-stop and swing-lock functions
• Standard cruise control activated via the Quick-Access button on the monitor
• ROPS-compliant operator's cabin includes higher pressurization, larger door with added glass, windshield with parallel wipers and tilting, adjustable-height steering wheel
• Hydraulic pressures and flows for various attachments can be adjusted from the monitor in the cab
• Quick coupler lines and circuits compatible with the Cat Pin Grabber Coupler
• Standard LED lighting package, counterweight rearview camera and right-side camera with separate in-cab color monitor
• Incorporate a PIN-code anti-theft system
