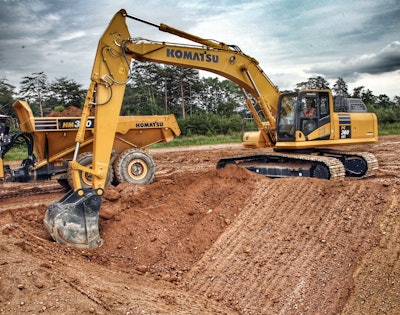

Komatsu PC360LCi-11 Introduces Intelligent Machine Control in a 36-ton Excavator

Factory-installed, integrated machine control system allows the machine to maintain productivity while limiting over excavation

May 27, 2016

Komatsu America Corp.

PC360LCi 11 5748a5ba40bcc

05252012 Komatsulogo 10721922

The 36-metric-ton PC360LCi-11 3D semi-automatic excavator utilizes 3D design data loaded into the machine’s monitor to accurately display machine position relative to target grade. When the bucket reaches the target surface, automation kicks in to limit over excavation.

Features a unique sensor package including stroke sensing hydraulic cylinders, an IMU sensor and GNSS antennas
Includes Auto Grade Assist, Auto Stop Control and Minimum Distance Control
Facing Angle Compass allows the bucket edge to be accurately positioned square with the target surface
Realistic 3D Display shows machine and design surfaces
intelligent Machine Control monitor uses a large 12.1 screen with touch screen icon interface
257-hp SAA6D114E-6 8.85-liter, Tier 4 Final engine
Up to 13% productivity improvement via increased hydraulic flow in Power Mode
Up to 7% more arm crowd force and bucket digging force when the one-touch, Power Max function is engaged
Comes with KOMTRAX level 5 technology and Komatsu CARE program
