Gradall XL 4330 V Excavator

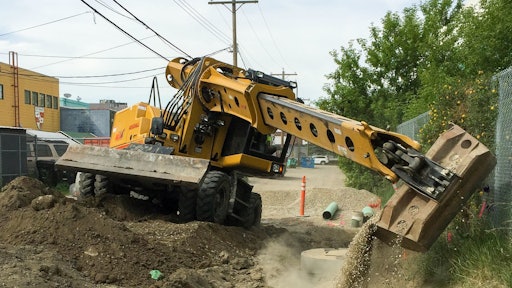

Gradall Xl4300 V Working 5dc3005bc2f9f
Gradallindustriesinc 10074870

The 43,580-lb. XL 4330 V on/off-highway excavator can work at the front, rear or either side of its rubber-tire undercarriage without the need for outriggers.

  • Telescoping, full tilting boom enables a maximum reach of 30 ft. 4 in. at grade and a maximum dig depth of 21 ft. 3 in.
  • Rated bucket breakout force of 25,405 lbs. and rated boom force of 22,075 lbs.
  • Short tailswing allows work in tight spaces and along highways with minimal traffic interruption
  • Volvo Penta Tier 4 Final-compliant diesel engine generates 173 hp at 2,200 rpm
  • Full-time, four-wheel-drive transfer case facilitates a maximum speed of 18 mph on and off pavement
  • Upgraded 24V electrical system
  • Wet disc brakes on both axles
  • Operator cab offers sound-deadening capabilities, a large seat with built-in joysticks and a convenient switch to select Gradall, Deere or SAE joystick pattern
  • Operator cab safety option provides rollover protection that is integrated within the existing cab structure
