Caterpillar M314 and M318 Wheel Excavators

Advanced hydraulics more efficiently power attachments to increase machine flexibility at the jobsite

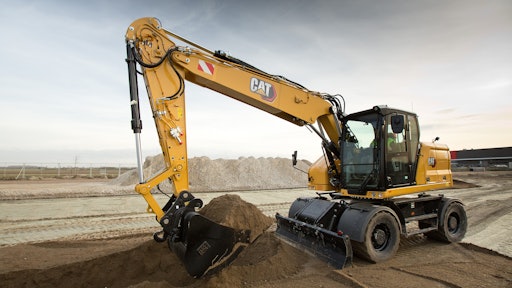

Cat M318 Whex 8 M1 A9219
Caterpill 10210679

The M314 and M318 Next Generation wheeled excavators feature multiple design updates that boost machine efficiency and lower long-term operating costs. Advanced hydraulics more efficiently power attachments, including Cat tiltrotators, to increase machine flexibility at the jobsite.

  • Operating weights range from 33,069 to 43,980 lbs.
  • Maximum digging depths of 17 ft. 4 in. and 18 ft. 4 in. and maximum reach at ground level of 28 ft. 5 in. and 29 ft. 5 in.
  • 110- and 129-hp Cat C4.4 engines meet  EU Stage V/U.S. EPA Tier 4 Final and offer up to 5% improved fuel economy.
  • Larger fuel tank on the M314 provides extended work time between fuel refills
  • Feature up to 15% more swing torque over the F Series
  • Travel speeds in excess of 21 mph
  • Standard larger Next Gen operator’s cab comes in a choice of deluxe or premium and offers improved entry/exit, advanced viscous mounts to reduce cab vibrations and easy to reach controls
  • Low-profile engine hood design, large front, rear and side windows and small cab pillars offer improved visibility into the trench and around the machine
  • Standard rear view and side view cameras
  • Started using the in-cab push-button or remotely via a Bluetooth key fob or the unique Operator I.D. function
  • 10-in touchscreen monitor and jog-dial control offer flexible, ease-to-use navigation of the machine controls
  • Power mode and joystick configuration can be programmed to operator preference to remember each operator’s settings on startup
  • Auto axle lock detects when the service brake must be locked or unlocked
