Liebherr R 926 Crawler Excavator

Liebherr included the Leica geosystem equipped, R 926 to the newest generation of crawler excavators.

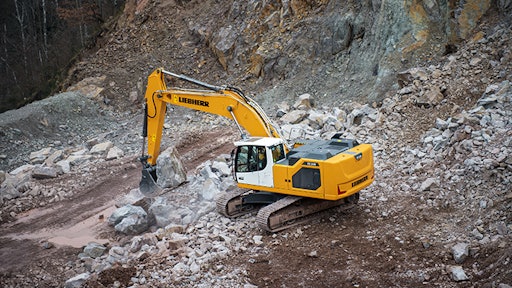

Liebherr R926 Crawler Excavator 96dpi

In the last year, Liebherr has launched seven crawler excavator models under 55 US tons (50 tonnes). Generation 8 machines have even greater power, higher productivity and more comfort for the operator.

  • The Generation 8 series, now in production at Liebherr-France SAS in Colmar, is made up of seven models ranging from 24 to 50 US tons (22 to 45 t): R 922, R 924, R 926, R 930, R 934, R 938 and R 945
  • The generation 8 is characterized by a new design which was first presented at Bauma in 2019
  • Increase comfort, safety and performance, and to achieve even better operational ergonomics
  • The R 926 crawler excavator with Leica system on display
  • The R 926 has an operating weight between 28 to 34 US tons (26 and 31 t)
  • Achieve a power of 150 kW/204 hp and 180 kW/245 hp respectively
  • The backhoe bucket capacities vary from 1.15 m3 to 1.75 m3 on the R 926
  • The R 926 models are available in stage V and Tier 4f
  • An extremely wide range of equipment and tools makes the R 926 crawler excavators very versatile for earthmoving, leveling, digging, loading and even lifting tasks
  • Simplified, fast and safe maintenance work for a new dimension of robustness
  • Liebherr and Leica Geosystems, part of Hexagon, will enter into a strategic partnership in the field of machine control solutions
  • The R 926 displayed at Conexpo is equipped with a Leica 3D Grade control system
  • The digging forces and tractive forces of the undercarriage and the swing torque of the uppercarriage have been significantly increased
  • Optimizes the load curve and inertia of the swivel drive in order to reduce fuel consumption
  • The crawler undercarriage requires zero maintenance
  • The track rollers are lubricated for life and the automatic central lubrication system makes it possible to maximize both component service life and productivity
  • The operator benefits from an ultra-spacious, temperature-controlled cab
  • The excavators have pneumatic seats with vertical and longitudinal suspension
  • High-resolution, extremely user-friendly 7" touchscreen
  • The windshield can be fully lowered
  • LED technology has completely replaced the halogen headlights, which increases their operating life
  • The range of lighting is available in the form of separate packages, with the high-performance LED+ lighting packages also available as an option
  • The unobstructed panoramic view and the rear and side monitoring cameras ensure maximum safety in the operator’s working area
  • The tiltable console makes it easy and safe to access the cab
  • The certified rollover protection structure for the cab provides robust protection in the event of the machine tipping over
  • The rear window serves as an emergency exit on all versions of the excavator
  • The windshield and right-hand window are made of tinted laminated glass
  • The uppercarriage is now accessed via a secured access platform (either standard or optional extra depending on the region)
  • The entire uppercarriage is fitted with non-slip studs and does not have any protruding elements
  • The generation 8 crawler excavators also have maintenance points that can be accessed from the ground
  • The engine oil, hydraulic oil, fuel and urea levels can be conveniently monitored via the touchscreen
