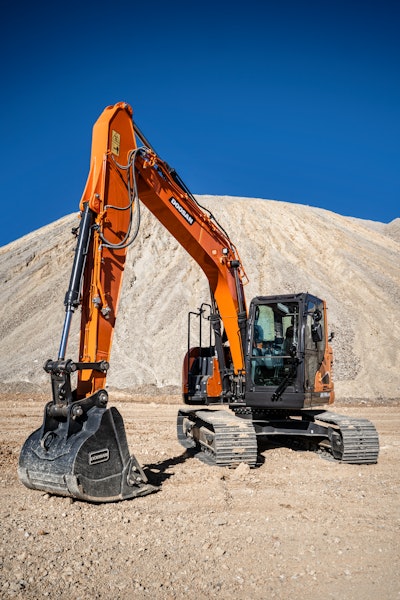

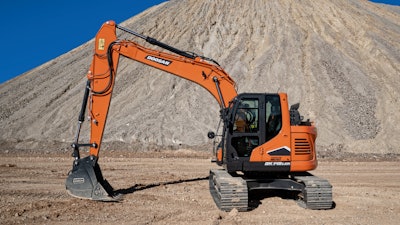

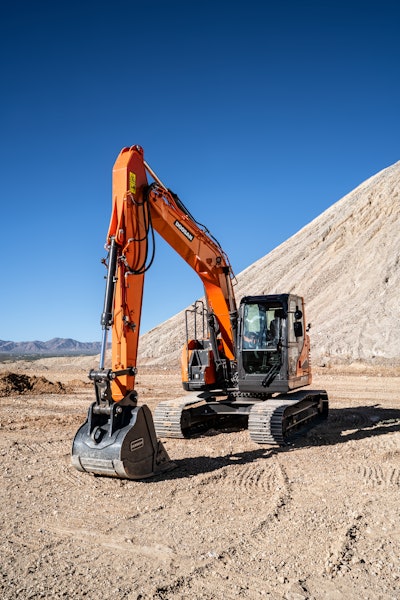

Doosan Introduces New DX140LCR-7 Excavator at WOC

Doosan has introduced a new DX140LCR-7 excavator at the World of Concrete 2022 tradeshow event, featuring the excavator's upgraded technologies and enhanced controls and comfort. The 14-metric-ton, reduced-tail-swing DX140LCR-7 comes with enhanced swing performance, increased fuel efficiency and more operator comfort features than the previous iteration.

Key specs for the excavator include:

• Power rating: 115 hp
• Operating weight: 35,424 lbs.
• Maximum digging depth: 19 ft. 8 in.
• Maximum digging reach (ground): 28 ft.
• Maximum loading height: 23 ft. 3 in.

Features include:

• Doosan Stage V D34 4-cylinder engine and delivers 86 kW at 2,000 rpm
• Exhaust gases are purified by Selective Catalytic Reduction (SCR) technology, a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter (DPF) with no maintenance before 8,000 hours
• Two systems (Variable Speed Control and Pump Torque Control) work together to improve efficiency while maintaining productivity
• Choice of four power modes (Eco - Standard - Power - Power Plus) and automatic Smart Power Control system for optimal power and reduced fuel consumption in all conditions
• Reinforced castings and forged steel pivot points and reinforced heavy-duty arm and boom
• Mono boom or articulated boom for added versatility
• Improved hydraulic line routing
• Rear and right side cameras as standard, anti-slip steps and platforms, as well as guard rails on upper structure
• Optional 360-degree, all-around view camera (AVM)
• Large side mirrors, eight LED work lights (four additional lights possible as an option)
• New attachment mode, with priority valve on the attachment, results in higher working efficiency when moving the arm and using the attachment at the same time
• Specific tiltrotator mode, for more precision and less back pressure when high flow is required
• Roomy cab, with low noise and vibration levels and all-round visibility
• Includes heating and even an optional cooling functionality of the seat and improved air ventilation
• 8-inch touch screen integrates functions and settings of your machine in one place
• Unlock door remotely, and start or stop the engine with included Doosan Smart Key
• Maintenance data directly available from control panel

Doosan Infracore North America LLC

• Easy access to all filters from ground level
• Cooling compartment equipped with fine mesh for the intake air, to protect coolers and minimize downtime
• Chain is composed of sealed, self-lubricating links for long-term dependability
• Activating the power boost control system increases digging force by 10%
• One-touch deceleration button immediately reduces engine speed to low idle
• Auto-idling starts four seconds (adjustable) after all controls are returned to neutral, reducing fuel consumption and noise levels in the cab
