CASE has launched seven new E-series excavators and the Minotaur DL550 compact dozer loader, which can be used for tough jobs or projects on construction sites. The new models of E-series excavators — including two in new size classes — focuses on operator performance and control as well as total cost of ownership.
The new offerings include OEM-fit 2D and 3D machine control systems to support the adoption and expansion of precision excavation solutions.
"CASE E-series excavators build on the powerful, smooth and responsive controls that CASE is known for, while adding all-new control customizations and configurations to drive that improved operator experience," said Brad Stemper, head of construction equipment product management in North America for CASE. "The E-series is both highly engineered for performance and built on a platform proven to withstand the heavy work and harsh working environments excavators work in every day."
The seven new models for the North American market include:
| CASE Excavator | Net Horsepower | Operating Weight |
| CX140E | 102-HP | 28,900-lbs. |
| CX170E | 121-HP | 38,400-lbs. |
| CX190E | 121-HP | 41,000-lbs. |
| CX220E | 162-HP | 52,000-lbs. |

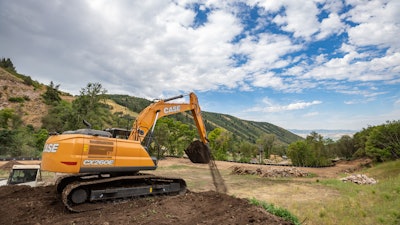

| CX260E | 179-HP | 56,909-lbs. |
| CX300E | 259-HP | 67,000-lbs. |
| CX365E SR | 205-HP | 78,600-lbs. |
The new lineup replaces five models in the CASE excavator lineup, while introducing two all-new models: the CX190E and the CX365E SR. Dozer blade and long reach models are also available in select configurations. Certain D-series excavator models will remain in the CASE product offering; next-generation versions of those machines will be introduced later.
“The CX190E is a 41,000-lbs. machine that fits a very important area of demand for contractors throughout North America, and the CX365E SR represents something that our partners have made clear they want — a minimum swing radius excavator in that 3.5 metric ton or larger class,” said Stemper. “The size, power and performance of that machine in a tighter footprint will transform the workflow and productivity on jobsites with space restrictions.”
“Between building out a more comprehensive product offering and delivering one of the broadest offerings of 2D and 3D OEM-fit machine control solutions, CASE E-series excavators are built to drive performance and efficiency for excavation businesses of all shapes and sizes.”
Operator Experience
A major enhancement in the cab of the new CASE E-series excavators is the 10-in. LCD display that provides access and visibility to cameras, machine data and controls. This includes the ability to display rear- and sideview cameras, while still accessing machine data and controls. This includes the optional CASE Max View display, which provides 270 degrees of visibility around the machine.
The new display allows for control customization with five configurable buttons that can be set to each operator’s most used functions – including, but not limited to fuel consumption, machine information, auxiliary hydraulics and emissions controls. The new Hydraulic Flow Control Balance for the hydraulic system, as well as the new attachment controls, are also controlled through this display.
These excavators are equipped with a new suspended operator station that locks the seat and console together so that, no matter the size of the operator, they have the same experience in terms of orientation to the armrests and the controls. Both the console and the armrest can now be further adjusted to meet operator preference.
Engine and Hydraulic Power
CASE has added new FPT Industrial engines throughout the product line, along with new enhancements to the hydraulic systems for power and performance.
Four new work modes (SP for Super Power, P for Power, E for Eco and L for Lifting) can be set in a range of up to 10 throttle settings, allowing operators to dial in performance to their work, and the new Eco mode drives lower fuel consumption by as much as 18 percent compared to previous CASE excavators.
The CASE E-series excavators feature a combination of diesel oxidation catalyst (DOC), selective catalytic reduction (SCR) and particulate matter catalyst technologies, as well as no lifetime after-treatment replacement or mechanical service over time. The system has 13 patents that supports emissions compliance and performance in working environments.
New hydraulic priority capabilities further allow the operator to set machine performance and responsiveness to their liking. CASE calls this Hydraulic Flow Control Balance, and it allows the operator to set arm in, boom up and swinging flow to their liking.
Attachment use has also been dialed in even further with the ability to adjust hydraulic flows based on specific attachment types through the new display, and to set maximum overflow for each attachment.
Technology
CASE has introduced new connectivity and telematics capabilities across the product line, including the SiteConnect Module along with the new SiteManager App (iOS and Android). This app pairs the operator’s phone or device to the machine to enable remote analysis. Certified CASE technicians then diagnose the health of each connected machine through various parameter readings and fault codes — and the technician determines whether the issue can be addressed remotely (such as clearing codes or updating software) or if it requires a trip to the machine.
CASE also leverages the SiteConnect Module to support telematics data and performance, and the collaboration between equipment owner, dealer and manufacturer. This connectivity allows the machine owner to share — at their discretion — real-time machine information with the dealer and the CASE Uptime Center in Racine, Wis.
The SiteConnect Module also improves the volume, flow and integration of data to the CASE SiteWatch telematics platform for real-time monitoring, management of maintenance and service intervals, examination of equipment utilization and overall machine record-keeping.
And to show that CASE fully stands behind this new line, each new CASE E-series excavator comes standard with CASE ProCare: a three-year CASE SiteWatch telematics subscription, a three-year/3,000-hour full-machine factory warranty, and a three-year/2,000-hour planned maintenance contract. ProCare allows business owners to invest in new equipment while making owning and operating costs predictable for the first three years of lease or ownership.
Machine Control
CASE has expanded its OEM-fit 2D, 3D and semi-automatic machine control solutions to a broader range of models. This ensures the combination of machine and solution is installed and tested by CASE certified precision field specialists. It also simplifies the acquisition process and allows for the technology to be grouped in with the purchase of the machine — combining the financing or lease approval, rate and payment in a single package.
