Volvo EC200E Excavator for Medium Duty Applications

With a lifting capacity of 16,138-lbs., the Volvo EC200E excavator supports a variety of attachments and is equipped for quick couplers.

Volvo Group

With a lifting capacity of 16,138-lbs., the Volvo EC200E excavator supports a variety of attachments and is equipped for quick couplers.

Volvo

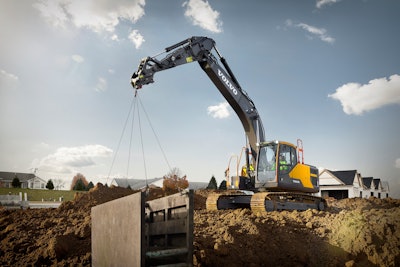

Volvo offers the EC200E 20-ton excavator for large-scale building and land projects. Designed for light- to medium-duty digging, its maximum digging reach is 32-ft., 9-in. with a maximum digging depth of 22-ft., 3-in. The excavator has a lifting capacity of 16,138-lbs. It also supports a variety of attachments and is equipped for quick couplers. Its size, versatility and price point make the Volvo EC200E excavator applicable for rental yards.

Specifications

Operating weight	44,974 to 54,388-lbs
Gross power (standard)	154 hp
Gross power (at engine speed)	2,000 rpm
Bucket capacity	0.36 - 1.44 yd³
Lifting capacity, along undercarriage	16,138-lbs.
Lifting capacity, at reach / height	20-ft. / 5-ft.
Max. digging reach	32-ft., 9-in.
Max. digging depth	22-ft., 3-in.
Overall width	9-ft., 10-in.
Tail swing radius	9-ft., 4-in.
