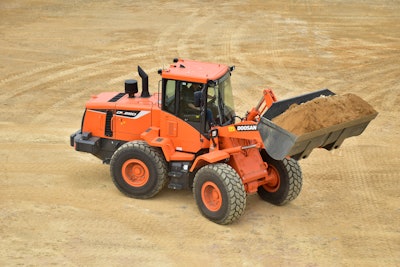

Doosan DL220-5 Wheel Loader

Tier 4 Final model designed to excel at digging, heavy lifting, carrying materials with a pallet fork and general construction tasks

Doosan DL220 5 wheel loader 5669c812689e1

The 3.0-cu.-yd. DL220-5 wheel loader replaces the “dash-3” (Tier 4 Interim ) model with a Tier 4-compliant, 160-gross-hp Doosan DL06 engine. It offers a variety of product enhancements, including improved operator comfort, increased productivity and easy serviceability.

  • Standard configuration offers a 27,381-lb. operating weight, 9-ft. 6-in. dump height and 22,706-lbf. breakout force
  • Optional high-lift configuration features a 28,296-lb. operating weight, 11-ft. dump height and 25,180-lbf. breakout force
  • Improved adjustable steering column with more floor space/legroom
  • Standard color LCD screen includes the fuel consumption gauge which reports in real time
  • Dashboard keypad now easier to review, adjust settings and clean
  • Two rear LED lamps provide better visibility when working at night
  • Optional quick coupler for easy attachment changes
