Volvo L45H and L50H Compact Wheel Loaders Available with High-speed Driveline

The L45H and L50H are now available with a high-speed driveline option than more than doubles top speeds from 12 to 31 mph.

L45 H L50 H T4f 1
Volvo Iron Mark

A high-speed driveline option is now available on the L45H and L50H compact wheel loaders, which more than doubles top speeds from 12 to 31 mph . This allows the machines to travel more quickly between jobsites and can also reduce cycle times.

  • Three driveline speeds include the standard 12 mph, an option of 19 mph and the top-speed option of 31.2 mph
  • Drive mode selector used to dial into the correct transmission setting
  • Work, Transport, Comfort and two types of Eco modes
  • Tractive power selector provides a choice of five settings to suit ground conditions for less wheel spin and reduced tire wear and fuel consumption
  • Optional electronic speed limiter for attachments such as sweepers and snow blowers controls maximum speed without losing tractive force
  • 100- and 117-gross hp Volvo D4J Tier 4 Final engines
  • Provide full turn tipping loads of 11,574 and 12,809 lbs. and generate 15,961 and 15,511 lbs. of breakout force
  • Include torque parallel linkage that combines Z-Bar and Parallel linkage in one
  • Volvo intelligent load-sensing hydraulic system
  • Front and rear 100% differential locks with dog clutch design to improve grip and traction

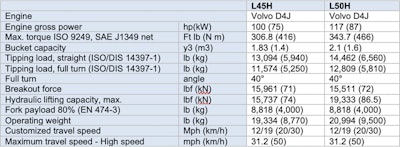

Volvo Chart
