JCB430 DieselMax 3-Liter Diesel Engine from JCB

3-liter model uses up to 8% less fuel and is 30% lighter than the 4.4-liter EcoMax engine

Jcb 430 Diesel Max 3 Litre Engine 9 591b778b4527c
7ccdf344

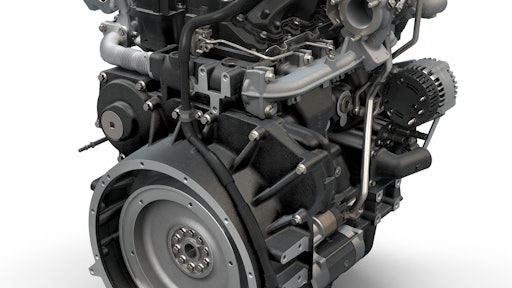

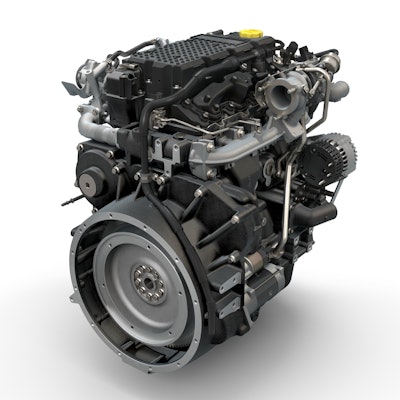

The 74-hp JCB430 DieselMax 3-liter, four-cylinder, Tier 4 Final engine from JCB Power Systems uses up to 8% less fuel and is 30% lighter than the 4.4-liter EcoMax engine.

  • Designed for mid-range construction and industrial equipment operating cycles
  • Produces 295 ft.-lbs. of torque from 1,300 rpm
  • Automatic valve adjusters require no regular maintenance
  • No DOC, DPF or SCR (no requirement for DEF)
  • Features integrated glow plugs, heavy-duty PTO, cast iron bedplate structure and rear-mounted geartrain
  • Integrated Mass Air Flow meter system allows the ECU to balance and deliver correct fuel mass regardless of temperature, altitude and air density
  • 45° gradeability standard
  • Can be equipped with an engine- or chassis-mounted ECU to suit a wide variety of applications
  • Designed to be ready for Stage V emissions standards and will be available with additional power ratings in the future
