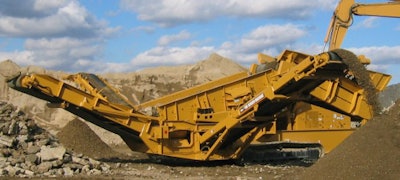

Spyder 512T Tracked Screening Plant

Spyder 512T Double Deck aggregate screening plant produces three different sizes of product simultaneously

Spyder 512t Framed 01gjnkuwpw9ya
Screen Machine Industries Logo 11075843
The Spyder 512T Double Deck Screening Plant is a patented aggregate screening plant designed to screen rock, soils, sand and gravel, and construction and demolition materials producing three different sizes of product simultaneously.
  • Feeding from three sides
  • 5- by 12-ft. Double Deck Two Bearing Screen
  • 5- by 12-ft. bottom deck
  • Adjustable screen angle
  • Yanmar Tier 4 84-hp diesel engine
  • Cattron wireless remote control operation
  • 36-in.-wide oversize conveyor with impact bed and 10-ft. 8-in. discharge height
  • 24-in. midsize conveyor with 13-ft. discharge height
  • 36-in. fines conveyor
  • 12-ft. 6-in. discharge height
  • 48-in.-wide impact bed belt feeder
  • 1/2-in.-thick grade 80 steel hopper walls
  • Heavy-duty tracked undercarriage
  • 20-in. shoe width for low ground pressure
  • Heavy unibody frame chassis
  • Patented Smooth Start Technology
  • Independent hydraulics
