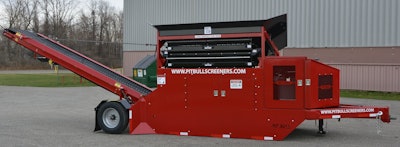

Lake Erie Pitbull 2300 Propane Screener

Pitbull 2300 Propane screening plant features a 48-hp Zenith propane engine that can also be easily converted to natural gas

Lake Erie Pitbull 2300 Propane Screener 5735ff56c3736

The Pitbull 2300 Propane screener is designed as a clean and cost-effective alternative to diesel power.

  • Delivers high outputs with a wide range of materials, including topsoil, mulch, gravel, stone and asphalt
  • Upper and lower screening decks provide 41+ sq. ft. of screening area each
  • 20-ft.-long stacking conveyor adjusts hydraulically from as low as 7 ft. 6 in. up to 13 ft. to feed material directly into a dump truck or tri-axle trailer
  • Loading apron accepts up to 3 yds. of material at a time depending on the feed rate
  • Low dump height of 8 ft. 4.5 in. allows hopper to be filled using standard construction equipment
  • Hydraulically driven transfer conveyor achieves production rates up to 100 yds. per hour
  • Features full hydraulic operation, tubular frame construction, a 10K Torflex axle with oil bath hubs, reversible shaker, heavy-duty suspension, electric brakes and trailer lights
  • 8-ft. 4.5-in. width and standard pintle hitch or optional gooseneck towing package enable easy transport
