Keestrack R5e Hybrid Impact Crusher

12.5-tonne crusher unit is driven via a transfer case directly by the onboard diesel engine and develops high crushing efficiencies

Keestrack R5e 1

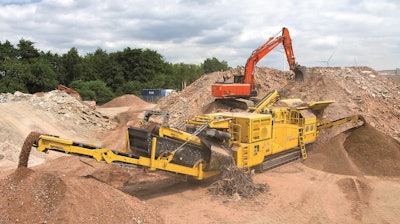

The R5e hybrid track-mounted impact crusher unit is designed to guarantee full capacity at low costs with the aid of a directly driven 350-tph crusher and electrical transport and screen components.

  • Highly efficient rotor driven directly via the 643-hp Volvo six-cylinder diesel engine
  • Load and level sensors used to optimize production rate and quality during operations
  • Operating hydraulics power all the lifting cylinders on the chassis and conveyor belts, the track drive, the vibrating discharge chute and double-deck primary screen and the compact double-deck post-screen module with oversize/stockpile conveyor
  • 160-KVa generator supplies power to all other conveyor systems, including the 6.54-cu.-yd.vibrating feeder and optional Neodym overbelt magnets
  • All system functions can be controlled by radio remote as a standard
  • Optional Keestrack-er GPS/UMTS monitor precisely documents all functions and provides information on potential malfunctions or required maintenance
  • Optional dolly trailer chassis
