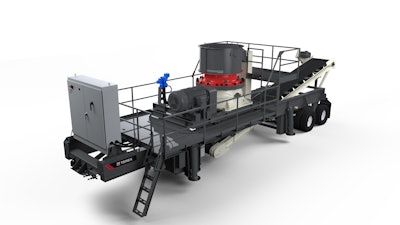

Cedarapids CRC320 Cone Crusher Plant

Easily transported on the road or on-site, the all electric plant takes the TG Series cones portable to fit a variety of layouts and applications.

Cedarapids Crc320 Cone Plant
Terex 10835350

The CRC320 Cone Crusher Plant features the TG320 300hp bushing cone crusher with an exceptionally large feed opening.

  • This economical portable plant runs smoothly with the optional patent pending “canted” jack system
  • Easily transported on the road or on-site, the all electric plant takes the TG Series cones portable to fit a variety of layouts and applications
  • TG320 is a 300 hp bushing cone with large feed size that can be easily and efficiently set up to perform and deliver the best cost per ton cubicle product by selecting the optimum crushing cavity and eccentric throw to suit the application requirements
  • 300 hp, 1800 rpm motor and crusher are mounted on a rubber isolated frame, common between modular, portable and static platforms
  • 15 hp, 42-in. wide discharge conveyor on a portable all electric chassis
  • Fitted with an overflow chute and removable overflow panel so the overflow can buffer feed surges in a closed circuit application
  • Service platforms with elevated observation deck, guard rails and access ladder as well as a convenient sloped stair / ladder provide safe access around the plant for inspection and maintenance
  • CCM™ automatic switchgear panel gives easy one touch control for single plant or multi plant operation without the expense and complexity of a central control and the plug and play design allows you to work with any combination, sequence, or number of plants without the need for custom programming
