BOMAG 2200/60 Cold Planer

BOMAG reintroduces its field-proven 600-hp-class BOMAG 2200/60 cold planer with a Tier 4 Final engine and multiple productivity enhancing design advancements

Img 4548
Bomag Logo 180x66

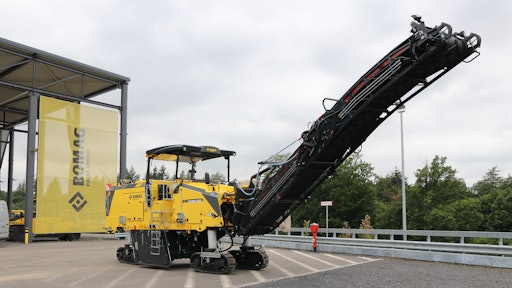

The  600-hp-class BOMAG 2200/60 cold planer features a Tier 4 Final engine and multiple productivity enhancing design advancements.

  • Reengineered milling chamber improves the robustness and design of the front material depressor, resulting in increased performance, lower wear and longer component life
  • 11.8-in. track width and 67-in. track length provide excellent traction when milling at depths reaching 12.6 in.
  • 86.3-in. cutting width and features BOMAG’s exclusive BMS 15 milling tooth holder system for milling productivity and extended service life by up to 30%
  • Tapered tooth retainer claw boasts a low-resistance profile that delivers more cutting power with less wear
  • Quick-change cutting tool design reduces the time required to change a full set of teeth by up to 75%
  • Optimized conveyor roller placement improves material flow on the new BM 2200/60 for more efficient removal of millings from the cutting chamber
  • Improvements to the 31.5-in. gathering and loading belts help to increase service life
  • The system’s new integrated dust extraction system helps to improve the working environment for the operators
  • Replaceable track pads help to reduce service time and increase milling time in the field while robust track rollers help to increase drive system durability.
  • Hydraulic hose placement and routing improves service life, reduces thermal aging and increases machine uptime
  • Integration of smart cylinders that provide internal measurements remove external sensors and the inherent risk of damage
  • Integrated service platform simplifies and significantly reduces the time for daily maintenance procedures, further improving machine uptime
  • Contractors can also choose the 600-hp class BOMAG BM 2000/60 model with a 78.7-in. milling width and all the same series design improvements
