American Eagle Hybrid Power Source (HPS)

The HPS allows companies to reduce their carbon footprint by operating hydraulic equipment without the use of the chassis engine.

American Eagle Hps

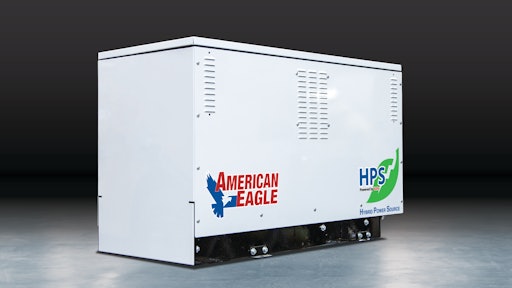

The American Eagle Hybrid Power Source (HPS) is a self-contained hydraulic power source that utilizes automotive-grade lithium-ion technology to provide a system that is low-voltage, anti-idle compliant and quiet during operation.

  • Volta lithium-ion technology
  • Up to 8 hours of run time
  • 13.5 kWh output
  • Integrated 48-volt chassis alternator allows charging from the chassis on site or while driving; optional shore power charging with standard 120-volt, 15-amp connection
  • Internal thermal protection
  • Heating system automatically activates to keep unit's core temperature above minimum for charging
  • Unit qualifies as low-voltage
  • Can be sidepack-mounted or mounted in the load bed
  • Weighs 790 lb.
  • 47 in. long by 21 in. wide by 28 in. high
