Qmax Trench Drainage System

Aco Qmax

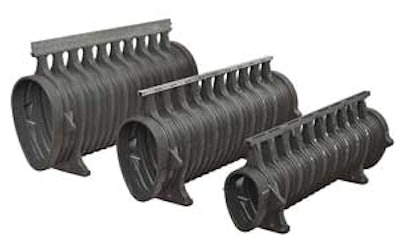

The ACO Qmax trench drainage system allows installers to combine different sized channels to create a continuous seamless trench run.

  • 14-, 18- and 24-in. widths
  • System connector plates enable connection of different sized channels
  • Oval-shape provides the drain a high capacity
  • Continuous Pavement Beam Inlet allows an unbroken reinforced slab to be cast around and through the inlet without interrupting the line of the inlet slot
  • Manufactured from recycled medium density polyethylene
  • Each channel is fitted with twin-lipped neoprene seals for a 100% seal preventing leakage or infiltration
  • 6-ft. 7-in. length
  • Number of edge rail options available
  • ADA compliant, high intake and brick paver compatible in either ductile iron or galvanized steel
