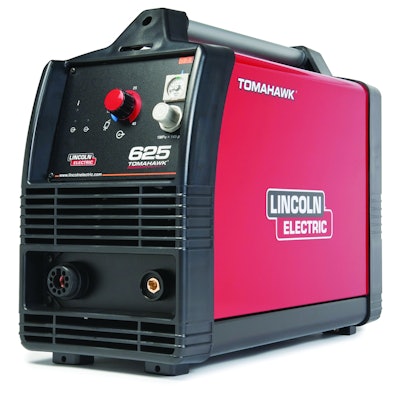

Tomahawk 625 Plasma Cutting System

March 29, 2011
Lincoln Electric Co
Lincoln Tomahawk625 10246077
Lincoln Electric Company Logo 10940726
  • Designed for plasma cutting on mild steel, stainless steel, aluminum, brass and copper
  • Operates on 208 or 230 volt single phase 60- or 50-Hz input power
  • Produces 10 to 40 amps output
  • Rated at 40 amps at 96 volts, 35$ duty cycle
  • Continuous output control focuses arc for up to 1/2 in. recommended, 5/8 in. maximum and 3/4 in. severance cut thicknesses
  • Standard LC40 plasma cutting torch, integrated water separator, air regulator and pressure gauge, cables, spare expendable parts, and shoulder strap
  • Can be powered with Lincoln Electric engine-driven welder/generators
  • Touch Start system
  • Front-panel purge control to adjust air flow without initiating an arc
