New Rental Products October 2005

The following are products recently introduced to the rental market, as well as models which have undergone significant changes. For more information on any of these products, simply fill out the reader service card included in this issue.

1129904155238 10304388

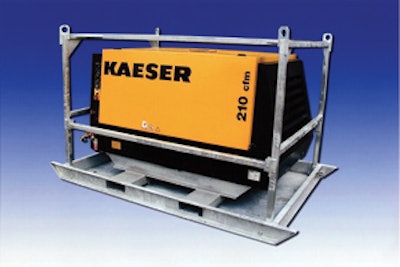

Kaeser M57 Mobilair in Stainless Steel
The M57 Mobilair is now available in a stainless steel package. This specialized M57 has stainless-steel gull wing doors for corrosion resistance and long life under severe environmental conditions. To protect the equipment during on/off load, the unit is mounted on galvanized steel skids and placed in a galvanized steel crash frame with solid-steel floor plan. The 45-hp M57 delivers 210 cfm at 100 psig while it’s Sigma Profile direct-drive airend combined with an oversized fuel tank provides 10 hours of uninterrupted operation.

Makita HM1810 AVT Breaker Hammer
Makita announces the launch of a new 70-lb. breaker hammer featuring Anti-Vibration Technology (AVT), an exclusiveinnovative counterbalance design for three times less vibration. The HM1810 is powered by a 15-amp
motor that delivers 1,100 bpm and 63 joules of impact energy. Features include an automatic brush cut-off system that protects the motor and warning indicator lamps for longer tool life. Unit is designed with a cylindrical tool holder for greater serviceability.

Compact Power Boxer Brute
The Boxer Brute compact utility loader measures just 42.5 in. wide, 69 in. long and 49 in. high, allowing it to access even the tightest projects. With an 875-lb. operating capacity and 27-hp Kohler Command Pro engine, the Boxer Brute can handle full-size attachments, including a 36-in. auger. Unit offers a full 4.5-mph travel speed with a ground clearance of 5.6 in. and features a ride-on plate, fingertip controls, crawl speed valve and safety stop plate.

JCB Robot 180T Skid Steer
The Robot 180T tracked skid steer has an 1,800-lb. operating capacity and is equipped with a 60-hp Tier II-compliant turbocharged engine. The track system utilizes a simple three-roller undercarriage design with a low number of moving parts while servo controls govern both the loader and transmission. Unit features an optional high-flow pump with 30.4-gpm at 2,973 psi, 66-in. width across the tracks and 81-in. turning radius. A low-slung, single loader arm enhances visibility and allows for side entry in and out of the machine.

SDS-Max Air Rotary Hammer Drill from CS Unitec
With a 2-in. bit capacity, CS Unitec’s SDS-Max Air Rotary Hammer Drill is designed for drilling concrete and masonry. It offers three modes of operation -— hammer drilling, hammering and rotation — and operates at 1.6 hp at 90 psi to be capable of zero to 250 rpm and up to 2,500 bpm. Powered completely by compressed air, this pneumatic hammer drill is inherently safer than electric drills in hazardous and wet environments where electricity requires special precautions.

Gehl Radio Remote Control System
Gehl’s radio remote control system provides control of boom functions from outside the cab or from within a personnel work platform of a telescopic handler. Hand-held, solid-state, wireless remote control pendant is waterproof and impact resistant and offers proportional trigger control for boom speed. Unit allows boom to be raised, lowered, extended and retracted, plus starts and stops the engine. Programmable, unique ID code prevents systems from conflicting at a jobsite.

Weldcraft Legacy Series TIG Torch
Weldcraft’s new Legacy Series allows Weldcraft to accommodate a wider range of customers’ TIG welding needs. The new series complements the premium American-made Crafter and WP Series by Weldcraft. Designed for customers with less demanding applications, the Legacy Series includes quality torches, including 9, 17, 18, 20 and 26 series torch packages, each of which is available in rigid, valved, flex and flex-valved versions.

Fecon HD60 Root Grapple
The HD60 Root Grapple for skid steers is designed with a ridged frame and serrated front tines for ripping and grabbing. Suitable for clearing brush and removing debris and logs, unit features 41-in. depth, 60-in. length and 37-in. open clamp height to allow for grabbing and holding awkward-shaped materials.

Earlex Spray Station 5000
Earlex introduces the 800-watt, two stage-turbine Spray Station 5000 which applies paint evenly for a professional finish, results in less overspray and paint waste and allows the user greater control and versatility in application. An easy-to-adjust gun nozzle allows use of three different spray patterns: round, horizontal and vertical. It sprays as fine as 1.0 in. that provides a high-quality, professional finish. Teflon-coated, the spray gun is made of hardwearing, non-corrosive material and is easy to clean and maintain. Liquid capacity is one quart. Comes with 9.5-ft. hose, 5.6-ft. main cable and two masks.

Vac-Tron “The Next Generation”
Vac-Tron’s latest offerings feature a new, remote, hydraulic rear door. This “easy open, easy close” back door, found on more than 50 standard models from 150 to 1,250 gallons, raises and lowers, locks and unlocks hydraulically at the touch of a button. Operators no longer get wet from spoils. Safety brace offers one more layer of protection for the operator as well as easy wash out. Trailer and skid mount included.

Mantis SwiftSplit
Mantis introduces an electric-powered vertical log splitter, the SwiftSplit, which offers five tons of hydraulic pressure to easily split logs up to 20 in. long and 12 in. wide. Powered by a 1.5kw electric motor that uses a standard 110-120v outlet, unit features a dolly carriage design that makes maneuverability easy, indoors or out. Comes with a cushion-gripped, height-adjustable ergonomic handle and 10-in. pneumatic tires.

Atlas Copco Rock Drills and Pusher Legs
Atlas Copco’s pneumatic rock drills and pusher legs are designed for reliability and performance in a variety of rock drilling applications, including driving drifts and tunnels with small cross sections. Three families of rock drills are available: the BBC, BBD and RH. The rock drills weigh between 49 and 68 lbs. and offer stroke lengths up to 3 in. and impact rates to 55 Hz. To ensure each rock drill works as efficiently as possible, Atlas Cocpo offers three families of pusher legs: the BMT, ALF and BMK.

Switch-N-Go from Bucks Fabricating
This patent-pending Switch-N-Go detachable truck body system loads skid steers and other cargo from ground level, transports to the jobsite, unloads, uses the dump bed for the job, reloads the skid steers and goes home, all with the press of a button.

Cyclonator with Media Filter
Riveer Co. introduces the Cyclonator media filter option for use with the Cyclonator closed-loop wash rack system. Ideal for heavy mud applications, the media filter removes suspended solids down to 20 microns. System allows you to run your system for more uninterrupted hours, cutting down labor costs.

CollectiveData Integrated Fleet Solutions Card
collectiveData Inc., a leading provider of fleet maintenance management software, introduces the Integrated Fleet Solutions card. Accepted at 90 percent of U.S. retail fueling stations and 41,000 service locations, the card can provide detailed fuel and services purchase information that can be directly integrated into the collectiveData Fleet and Fleet Pro maintenance management programs. Security features prevent unauthorized purchases. The card is available to managers of any size fleet.

Manitou MT 6034
The new MT 6034 telescopic handler has 34 ft. 3 in. of lift height with a rated operating capacity of 6,000 lbs. The model features a welded box-section design boom for exceptional strength and a rugged frame with reinforced C-channels, internal wet disc brakes for longer life and better stopping ability, and a negative (spring-applied, hydraulically released) parking brake system. The negative parking brake applies automatically when the engine is shut off or manually by pressing a rocker switch. Available with either 99- or 115-hp John Deere turbocharged diesel engine, other standard features include three-speed power-shift transmission, three steering modes and quick-attach mounting system.
