Chicago Pneumatic Electric Submersible WEDA Pumps

Chicago Pneumatic Power Technique (CP) has introduced five new electric submersible pumps to the North American market. WEDA pumps are ideal for dewatering of construction sites, mines, flooded areas and more where small, lightweight, portable and easily maintained pumps are required to perform daily jobs quickly.

• Designed for handling liquid with abrasive particles
• 66-ft. submersible depth

• Pumps include WEDA 10, 30, 40, 50+ and 60+
• Wear resistant wet end in CR-alloy steel and natural rubber
• Adjustable wear parts
• Complete seal pack
• Built-in capacitor and contractor
• WEDA 10: single-phase (1.5 hp) or three-phase pump type (1.2 hp); 117 gpm max flow; .16 in. max solid handling size; 7.2-in. circumference; 8.7 in. wide; 17.4 in. long; 27.5-lb. weight
• WEDA 30: single-phase (2.7 hp) or three-phase (2.5 hp); 370 gpm max flow; .27 in. max solid handling size; 44-lb. weight; 8.7-in. circumference; 11.2-in. width; 19.8-in. length

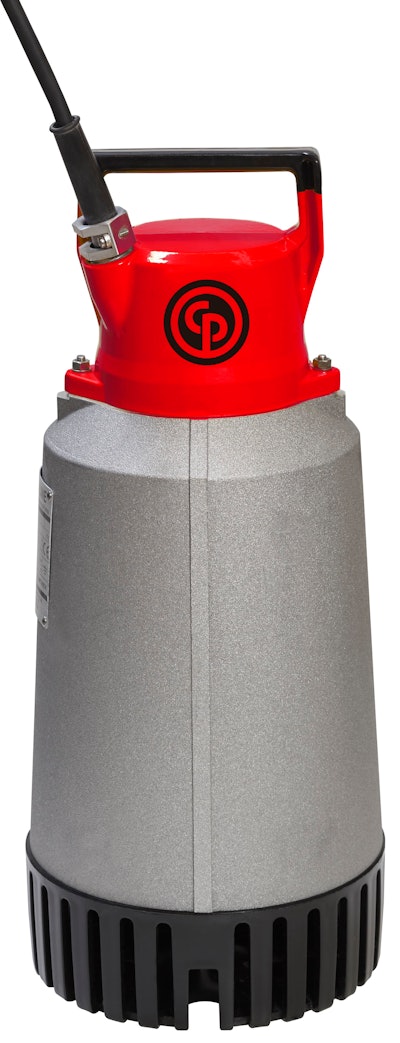

• WEDA 40: three-phase (4 hp); 420 gpm max flow; .27-in. max solid handling; 55-lb. weight; 11.3-in. width; 19.8-in. height
• WEDA 50+: normal head (NH) or high head (HH) configuration with 8.5 hp; 620 gpm (NH) or 310 gpm (HH) max flow; .32-in. max solid handling size; 122-lb. weight; 10.9-in. circumference; 13-in. width (NH) or 11.9 -in. (HH); 28.3-in. height
• WEDA 60+: normal head (NH), high head (HH) or super high head (SH) configurations; 11.5 hp; 700 gpm (NH), 340 gpm (HH) and 260 gpm (SH) max flow; .32-in. max solid handling size; 134-lb. weight; 10.9-in. circumference; 13- (NH) or 11.9-in. (HH & SH) width; 29.9-in. length
