SX-180 Telescopic Boom Lift

180-ft. lift is said to be the largest in the industry and the first with a five-section boom; designed to be driven at full height

Sx 180 016 11327175

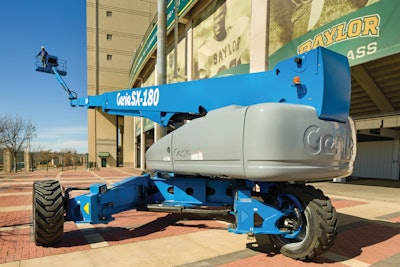

Terex says its Genie SX-180 self-propelled telescopic boom lift is the largest of its product lineup, with the first five-section boom in a personnel lift. The machine is designed to be driven at full 180-ft. height. Travel speeds vary based on boom position. The newly designed X-chassis extends and retracts to provide both stability on the job and a narrow profile for transport.

  • Vertical reach: 180 ft.
  • Horizontal reach: 80 ft.
  • Operating weight: 54,000 lb.
  • 10-ft., 180-degree rotating jib
  • 3-ft. x 8-ft. platform has an unrestricted capacity of 750 lb.
  • 50-gal. fuel tank and a 7.5 KW generator are standard equipment
  • Stowed dimensions: 10 ft. high, 8 ft. 2 in. wide, 42 ft. 7 in. long

Video: Genie SX-180 is World's Tallest Boom Lift
