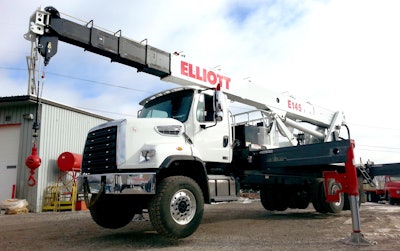

Elliott E145 E-Line Aerial Work Platform

145-ft. truck-mounted aerial device features an ANSI A92.2 aerial designation that eliminates OSHA test pick and proof test requirements

Elliott e145acc 561c254a71c50

Elliott Equipment Company and Utility One Source revealed the new E145 E-Line aerial work platform model at ICUEE 2015. Designed primarily for use in transmission line construction applications, the E145 is a 145-ft. truck-mounted aerial device that features an ANSI A92.2 aerial designation that eliminates OSHA test pick and proof test requirements, material handling capabilities and final weights that allow for permit-free installation on a 6x4 commercial chassis.

  • 145-ft. working height with full powered boom
  • 1,200-lb.-capacity 36" x 72" cdetachable two-person platform with hydraulic yoke lifting system
  • 15-ton rated winch with a 9,600-lb. single line pull and 400 ft. of synthetic rope
  • EZ-Crib two-stage vertical outriggers for extended ground penetration
  • Proportional wireless remote controls with an integrated work envelope/LMI display
  • Standup ride-around control station with operator’s seat
  • Hydraulic intensifier in the platform increases net usable capacity
  • CANBUS outrigger control system
  • 50-state bridge legal weights on three axles
