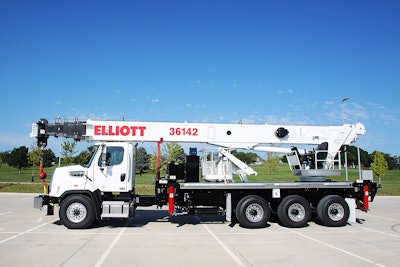

36142 Boom Truck

Elliott Equipment Company's 36142 BoomTruck telescopic truck-mounted crane features the longest boom in its class with a 5-section, 142-ft. main boom

IMG 2541 5833104401775

Elliott Equipment Company's 36-ton 36142 BoomTruck telescopic truck-mounted crane features the longest boom in its class with a 5-section, 142-ft. main boom.

  • Optional 32- to 49-ft. two-section jib
  • Patented standup ride-around lower control console
  • Optional open seated controls or enclosed crane cab with heater and optional air conditioning
  • 9,060-lb. single line pull winch with 12,800 lb. bare drum pull
  • 9/16-in. rotation resistant steel rope
  • Internally wired anti-two-block cable
  • 21-ft. 2-in. span out-down outriggers with full and mid-span positions/charts
  • 600-lb. capacity yoke-style pin-on work platform with hydraulic leveling system
  • Maximum tip height: 201 ft.
  • Load radius: 5 ft.
