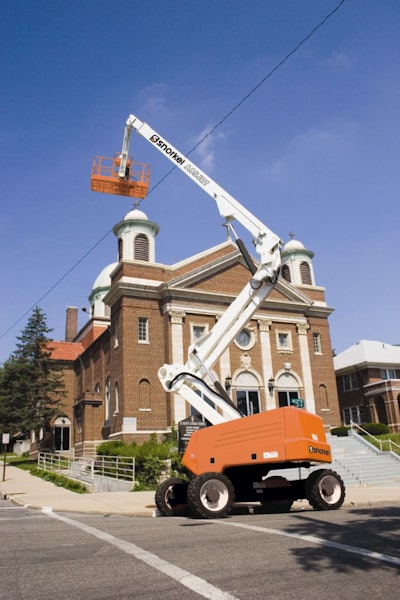

The largest articulating boom in the Snorkel range, the AB85JRT provides a maximum platform height of 84 ft. 6 in. and features a 6-ft. 10-in., 135-degree jib enhanced with 140-degree side-to-side rotation.
- Riser boom offers a maximum clearance height of 27 ft. 11 in. for “up and over” access over walls or other obstacles
- Four-wheel drive
- Four-wheel steer including crab steer
- Drivable at full height
- 64-hp air-cooled diesel engine
- Proportional control of drive, boom lift and slew functions
- Traverse gradients up to 40%
- Relay logic controls and hydraulics, plus swing-out engine modules
- Inside turning radius of 7 ft. 10 in.
- Max horizontal reach: 61 ft. 11 in.
- Lift capacity: 500 lbs.
- Ground clearance: 13 in.
- Standard features: poly-filled lug tires, warning horn, hydraulic platform rotation and power line to platform
- Optional packages: cold weather start kit; extreme cold weather package; lights kit; aircraft package; towing kit; generator package; generator/welder kit
