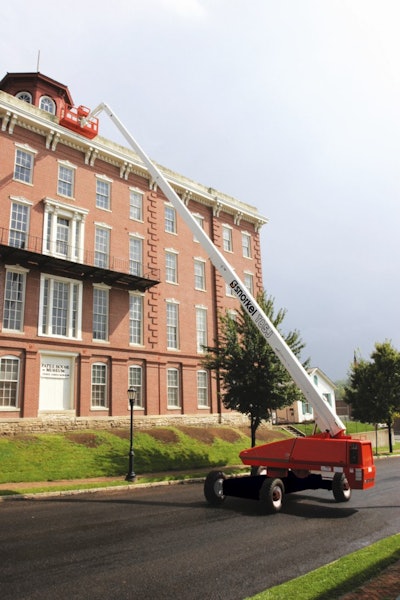

TB80 Rough Terrain Telescopic Boom Lift

T85 J Comp
Snorkel Logo small

The TB80 features simple relay logic controls and hydraulics, plus swing-out engine modules to ensure that the machine is easy and inexpensive to inspect, service and repair.

  • Four-wheel drive and steer
  • 64-hp air-cooled diesel engine
  • Traverse gradients of up to 40%
  • Proportional joystick control of drive, boom lift and slew functions
  • Drivable at full height
  • Standard features: poly-filled lug tires, warning horn, hydraulic platform rotation and power line to platform
  • Inside turning radius: 7 ft. 10 in.
  • Ground clearance: 13 in.
  • Max platform height: 80 ft.
  • Max horizontal reach: 71 ft. 2 in.
  • Lift capacity: 500 lbs.
  • Optional features: swing gate; hydraulic generator; platform control box cover; twin platform work lights; an airline to platform (with take-up reel); flashing amber beacon; drive motion alarm
  • Optional packages: sand blast protection kit; cold weather start kit; hydraulic system cold weather start kit; and towing package
