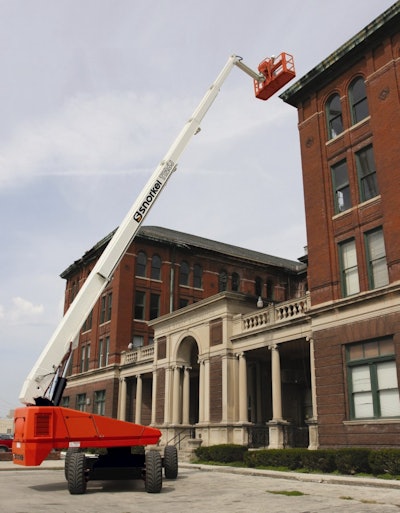

TB126J Rough Terrain Telescopic Boom Lift with Jib

T126 J Comp
Snorkel Logo small

The largest boom in the Snorkel range, the TB126J rough terrain telescopic boom lift features a hydraulically-powered extending rear axle for additional stability while elevated.

  • 6-ft., 75-degree jib
  • Simple relay logic controls and hydraulics, plus swing-out engine modules
  • Four-wheel drive
  • 65-hp air-cooled diesel engine
  • Traverse gradients up to 30%
  • Drivable at full height
  • Proportional joystick control of drive, boom lift and slew functions
  • Working envelope management system to help the operator safely utilize the machine to its full capabilities
  • Lift capacity: 500 lbs.
  • Ground clearance: 13 in.
  • Max platform height: 126 ft.
  • Max horizontal outreach: 62 ft. 11 in.
  • Standard features: poly-filled lug tires, warning horn, hydraulic platform rotation and power line to platform
  • Options: swing gate instead of drop-bar entry to the platform; hydraulic generator; platform control box cover; twin platform work lights; an airline to platform (with take-up reel); flashing amber beacon; and drive motion alarm
  • Optional packages: sand blast protection kit; cold weather start kit; hydraulic system cold weather start kit; and towing package
