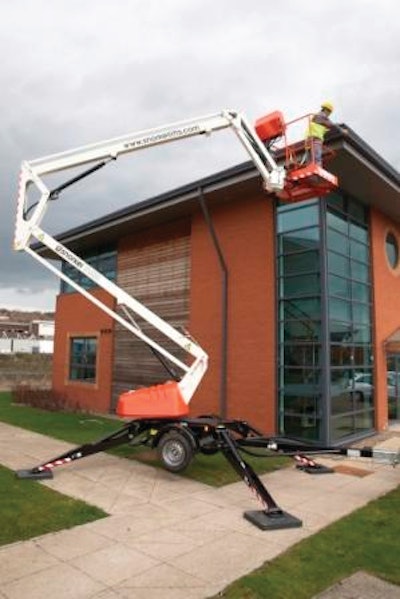

TL37J Towable Articulated Boom Lift

Tl37 J Comp

The TL37J is a high-specification, durable and robust trailer-mounted boom lift is designed to be towed by most saloon cars and light commercial vehicles. Completely electrically-powered, the TL37J is quiet, clean, environmentally friendly and has very low running costs.

  • Use indoors or outside
  • 24-volt deep cycle battery pack; available in a 230-volt mains-powered version or a bi-energy version offering the flexibility of both petrol and battery power
  • Proportional live hydraulic controls
  • Accessible lift-up covers give fast access to the batteries and running gear
  • Articulated boom configuration for "up and over" access
  • 4-ft. 3-in. jib with 130-degree working arc and 160-degree powered platform rotation
  • Available with a GRP fibreglass platform to help protect operator from electric shocks
  • Hyraulically powered fold-down outriggers with load-sensing interlocks with LED indicators
  • Level sensor ensures correct deployment via visual check
  • Safety features: automatic reverse and over-run braking in transport mode
  • Set of duplicate controls on chassis
  • Hand pump in platform for emergency lowering
  • Max platform height: 36 ft. 8 in.
  • Max horizontal outreach: 19 ft. 4 in.
  • Standard features: integral road lighting board for use when towing; power line to platform
  • Optional extras: hydraulic friction drive assist system; cyclist protection guards; onboard 230-volt generator (mains-powered units only)
