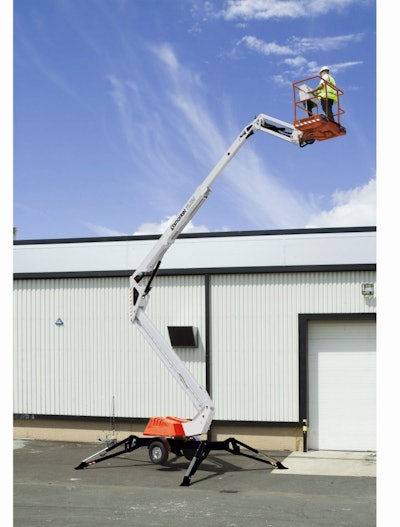

TL49J Towable Articulated Boom Lift

Tl49 J Comp
Snorkel Logo small

The largest towable boom lift in the Snorkel range, the TL49J is a high-specification, durable and robust trailer-mounted boom lift designed to be towed by most saloon cars and light commercial vehicles.

  • Completely electrically-powered; 24-volt deep cycle battery pack
  • Available in a 230-volt mains-powered version or a bi-energy version offering the flexibility of both gasoline and battery power
  • 4-ft. 3-in. jib with 130-degree working arc
  • 90-degree powered platform rotation
  • Use indoors or outside
  • Proportional live hydraulic controls
  • Articulated boom configuration for “up and over” access
  • Accessible lift-up covers for fast access to the batteries and running gear
  • Hydraulically powered fold-down outriggers with load-sensing interlocks with LED indicators
  • Level sensor ensures correct deployment via visual check
  • Safety features: automatic reverse and over-run braking in transport mode
  • Duplicate controls on chassis
  • Hand pump in platform for emergency lowering
  • Available with a GRP fibreglass platform to help protect operator from electric shocks
  • Max platform height: 48 ft. 1 in.
  • Max horizontal outreach: 27 ft. 10 in.
  • Standard features: integral road lighting board for use when towing; power line to platform
  • Optional extras: hydraulic friction drive assist system; auto-level outriggers; onboard 230-volt  generator (mains-powered units only)
