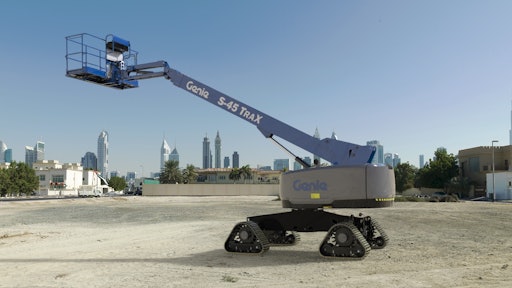

Genie High Float & TraX Booms

The High Float (HF) and TraX boom lifts models are based on the design and engineering of the Xtra Capacity booms and are suited for use in sensitive ground conditions.

• Comply with the latest platform load sensing requirements and terrain sensing guidelines
• All HF models offer a lift capacity of 600 lbs. unrestricted, with the S-60 HF and 65 HF models offering a 1,000-lb. restricted capacity
• TraX models feature a 660-lb. unrestricted and 1,000-lb. restricted dual lift capacity
• Automatic envelope control on most models provides ability to automatically retract as the booms reach their operating envelope
• Load sense cell continuously checks the weight in the platform and limits the operating envelope to match the load chart
• Chassis tilt sensor provides access to different ranges of motion based on chassis angle and automatically cuts out certain lift and drive functions when the tilt activation setting is reached
• CAN-based control system incorporates Smart Link technology
• TraX models engineered with a patented track and axle system
