Magni TH Range Designed to Fulfill Expectations

Magni introduced the TH Range, a new design featuring a leveling system with +/- 8 degree adjustments, a Deutz engine, flow share management and other distinct qualities.

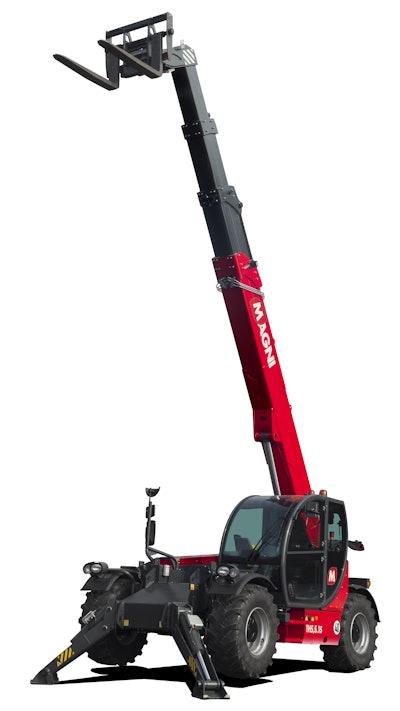

Magni TH 5,5.15
Magni TH 5,5.15
Magni America LLC
Magni Logo

Magni has introduced a completely new design and concept, the TH Range, designed to fulfill the expectations of the industry and building sectors. The overall dimensions of these units are compact, if compared to its lifting capacities — perfect to move freely in every jobsite and condition. The design can easily be traced back to Magni, with its soft lines and red color.

This range is composed of the following units:

  • 5.8 (industry and mining version)
  • 5,5.15
  • 5,5.19
  • 5,5.24
  • 6.10
  • 6.20

All 75 kilowatt and 100 kilowatt models can be used in combination with Magni's platforms. These models comply with the EN1459-1 standard, providing the ability to work at heights safety.

Axles

  • Multidisc brakes in oil bath ensures, with the 4WD and the 4WS
  • Leveling system with +/- 8 degree adjustments — allows the machine the ability to work on irregular terrain

Chassis

  • Lowered for extra stability when the load is suspended (not applied to the 5, 5.24, and 6.20)
  • Shifted center of gravity downwards for more stability —  functions well in off-road conditions

Cabin

  • Full visibility
  • FOPS/ROPS
  • 100 percent air filtration
  • Adjustable steering column
  • 7 inch touchscreen (available in 11 languages)

Stabilizers and auto-leveling system

  • Ability to pivot, deploy quickly, and position
  • Provides maximum stability because of large contact surface
  • No protrusion when closed  used for moving around tight spaces

Deutz Engine

  • Available in Stage V, IV final or IIIA
  • No need for conversion kits
  • The 75 kilowatt version comes with standard air-conditioning, basket predisposition, and possibility to work with suspended loads
  • The 55 kilowatt version has the ability to add, for now, the air conditioning as options
  • All models are also available with Stage IV final and IIIA engines

Load-sensing system

  • Working pressure of 350 bar
  • I/s high pressure pump for hydraulic movement
  • Two electro-proportional joysticks
  • SIL 2 main safety valve

Hydraulic System

  • Electronic Management selects the best engine speed for the hydraulic power required
  • Utilization of pipes — features less oil heating and a tidier installation

Software

  • Flow share management, provides safety and precision of each hydraulic movement (up to 3/4 movements)

Boom

  • High-tensile steel, tough but flexible increasing the load capacity.
  • Automatic attachment system
  • Side-shift system, designed for the TH 6.20 and TH 5,5.24 models, allows a translation of +/-5 degrees

Four-wheel drive and steering

  • Maximum stability and freedom of movement in every condition
  • Three types of steering: concentric, frontal and crab steering

Baskets

  • Non-slip floor
  • Anchor eyes
  • Safety devices
  • Anchorage eyelets
  • Electronic safety features for constant monitoring during work at height
