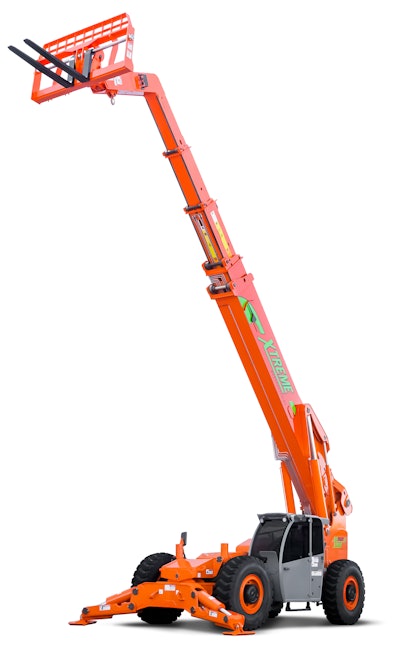

Xtreme XR1585-C Fixed Boom Telehandler

New model billed as the world's tallest fixed boom telehandler makes its debut at World of Concrete 2021.

Xtreme Xr1585 C
Xtreme 11175679

The 65,500-lb. XR1585-C utilizes a five-section boom design that enables it to deliver a maximum lift height of 85 ft. and a 67-ft. maximum forward reach.

  • Capable of lifting loads up to 15,000 lbs.
  • Available with a choice of fixed, fork positioning, swing or side tilt C-class carriages
  • 173-hp Cummins 4.5L Tier 4 Final diesel engine and 100-gal. fuel tank
  • Measures 102 in. wide, has a stowed height of 10 ft. 1 in. and has a turning radius of 16 ft. 8 in.
  • Standard wide stance outriggers ensure maximum stability
  • 49-gpm hydraulic flow and a hydraulic pressure of 4,000 psi enable use with a range of C-class attachments
  • 12,000-lb.-capacity version (XR1285-B) available for use with B-class attachments
  • Other features include 360° visibility from the cab, a fully-rated boom lift point, long-life boom rollers for smooth operation and a choice of open cab, enclosed cab and enclosed cab with heat and AC
  • Various tires, fork tines and options, including telematics, available
