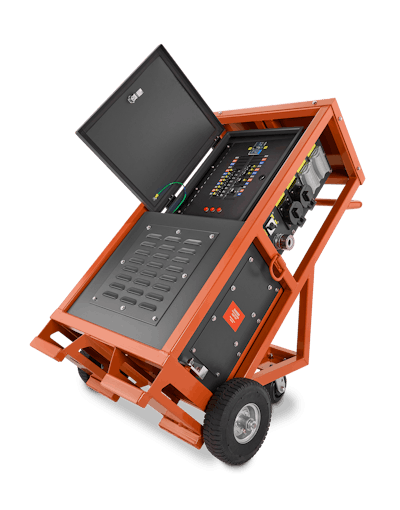

The 15kVA Portable Dolly Cart Transformer is Suited for applications such as scheduled maintenance operations during shutdowns in continuous process facilities and anywhere portable electric power is required during idle periods.
- Provides 480V:208V step down to power a total of nine 20A 120V duplex receptacles and nine 20A 240V 1P GFCI circuit breakers
- Weighs just 350 lbs. and is easily maneuvered in tight locations
- Mounted on a steel construction dolly in a three-wheel ‘kick-back’ configuration sized to pass through a standard doorway
- Dolly also includes a standard lift eye and forklift pockets plus D-rings to tie down on a flatbed trailer for transportation
- Electrical components housed in mating NEMA 3R aluminum enclosures
- Input via a 15-ft.-long, 4/4 Type W hardwire
- Options include a 480V Feed-Thru capability to support welding operations, 600V input for Canadian applications with 600V Feed-Thru capability, powder coating in a range of customer-selectable colors and UV Printed customer logos
