Equipment Today Product Showcase June 2007

Trucks & Transportation

1182798803031 10298205

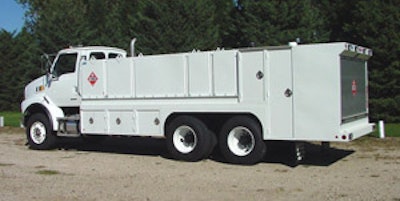

Service Trucks Eagle Pro Lube Bodies
Eagle Pro Lube bodies feature modular construction that allows different tank sizes and/or combinations to be utilized on the same body base, as well as easy walk-up accessibility.

  • Lube, fuel/lube and lube/service combinations
  • 11-gauge A60 galvanneal construction
  • Spring-mounted frame and tanks
  • Integrated spill basin
  • Electric over air or hydraulic controls
  • Pneumatic and hydraulic fluid pumping systems



Feterl Model 8000 Crane Body
The Model 8000 heavy-duty crane body features an 8,000-lb. crane with a 1/4-in. crane tower that is 100% welded to the overall substructure.

  • Pressurized compartments with automotive weather stripping
  • Gang Lock used on all models
  • 24,000- to 33,000-lb. GVW truck recommended with a clear 84-in. CA
  • 50-in. deck area with 1/8-in. tread plate throughout
  • Stainless steel door hinges



Maintainer Corp. Signature Series
The Signature Series includes a 6000 Series tall tower crane on an 11-ft. body, a 10000 Series tall tower crane on an 11-ft. body, a 12000 Series tall tower crane on a 14-ft. body and a 2-ton lube body.

  • 12-gauge galvannealed A60 steel
  • 3/16-in. single-piece aluminum doors
  • Line-X protective spray covering
  • Interior strip and exterior flood lighting
  • Hydraulic air compressors



Auto Crane Titan 70 Crane Service Body
The Titan 70 has the capacity to support up to a 70,000-ft.-lb. crane.

  • One-piece side pack features corrosion-resistant, 10-gauge galvanneal steel construction and an internal hinge design
  • Standard LED lights, advanced T-handle door latches and slammable tailgate
  • Designed to match up with the 14,005H telescoping crane



Stellar 6628 Crane
The 6628 telescopic crane offers 28 ft. of hydraulic reach.

  • 38,000-ft.-lb. capacity with maximum lifting capacity of 6,000 lbs. at 6 ft. and 1,350 lbs. at 28 ft.
  • Planetary winch system with hydraulic/mechanical brake system
  • Hexagonal tube boom construction eliminates boom flex and side-to-side movement



IMT Dominator IV Mechanics Truck
The enhanced Dominator IV mechanics truck gives operators more comfort and mobility around the vehicle.

  • 80,000-ft.-lb. 8025 crane
  • Inverted A-frame floor structure reduces weight of the body
  • Three-point door latches
  • Single-hand tailgate operation
  • Improved tools and parts access
  • Unique shelf hanger bracket system allows quicker adjustment of shelf layout
  • Rain eaves over compartment doors



Stahl Service Trailer
The Stahl Service Trailer (SST) combines the organized side compartment storage of a service body with the full-height interior storage of a trailer.

  • Exterior doors allow access to lower compartments
  • Large, walk-in interior storage area features open floor storage and adjustable side shelving
  • Tools can be positioned where needed
  • Available in 12- and 16-ft. models
  • Optional features include compartment lighting and ladder racks



BrandFX Fibre Body
The Fibre Body Service Bodies weigh 40% less than comparable steel bodies.

  • Haul more tools and equipment with a given GVW rating
  • Rust proof
  • Factory-installed weather sealing for all exterior lights
  • Gel coat finish
  • Bodies assembled with Huck LockBolts
  • One-piece doors
  • Automotive-grade weather seals



H&H Service/Installation Truck Body
The Model 96-168 service/installation truck body offers the power and benefits of all-hydraulic crane operation with the convenience of an electric lift gate power source.

  • Model 6406H Auto Crane offers a 38,000-ft.-lb. lifting capacity at 10 ft. and a 1,900-lb. capacity at a hydraulic reach of 20 ft.
  • 1,600-lb.-capacity Thieman model TT-16 lift gate
  • 14-ft.-long by 8-ft.-wide body
  • Aluminum or galvannealed steel toolboxes available
