Philippi-Hagenbuch offers Sideboards to haul more material with each load while minimizing material loss. Sideboards fit to vertically extend the sides of off-highway haul truck bodies.
The company works with each operation to custom engineer Sideboards to achieve the required height based on the truck’s rated weight, the material being hauled and the loading equipment. Sideboards increase the haul truck’s capacity while reducing or preventing spillage, keeping haul roads clean and protecting haul truck tires.
“We have decades of experience in providing custom and incredibly durable solutions to optimize hauling operations,” said Josh Swank, Philippi-Hagenbuch vice president of sales and marketing. “Our Sideboards are a great solution to help producers enable their trucks to haul their full rated capacity. Sideboards offer the simplest, least-expensive way to add volume to a truck body.”
Sideboards are available in 1-in. increments from 6 to 40 in. In some cases, they may be available in a larger size, depending on the haul truck, the environment and the material being hauled. The company also considers the operation’s loading equipment, so that the final height will not exceed the loader’s capabilities.
Philippi-Hagenbuch determines the proper size for Sideboards using a calculation based on material density, 2:1 heap capacity and haul truck body volume. For example, if a haul truck’s tonnage capacity is 71 tons and the volumetric capacity is 52.3 cu. yd. at a 2:1 heap, Sideboards add .92 cu. yd. of volumetric capacity for every inch of height that is added to the truck body.
Philippi-Hagenbuch

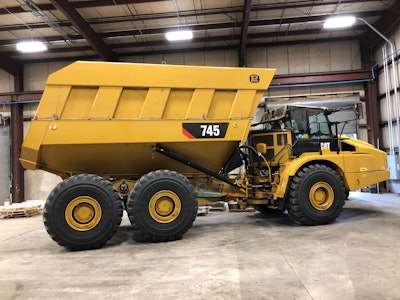

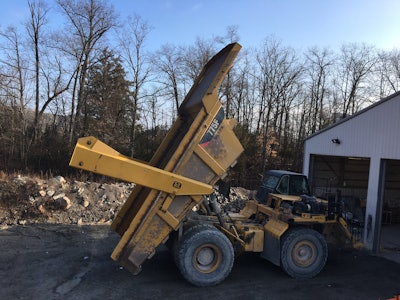

Designed in an upside down “U” shape, Sideboards fit over the existing body sides and are securely welded to the body. Philippi-Hagenbuch engineers Sideboards to fit the specific make and model of off-highway haul trucks and the front is “trim to fit” for mating up with the front slope of the body. Operations can utilize Sideboards alone or pair them with Philippi-Hagenbuch Autogate Tailgates to further increase capacity and prevent material from spilling from the back of the body.
Philippi-Hagenbuch Sideboards are built of Grade 80 steel for trucks ranging from 20 to 150 tons and 450 Brinell on trucks 150-plus tons for durability. They’re also engineered with internal structural gussets. Sideboards can be installed at Philippi-Hagenbuch’s factory in Peoria, Illinois, in the field with Philippi-Hagenbuch supervisory assistance or self-installed by a dealer or customer.
*Updated on April 4, 2024
