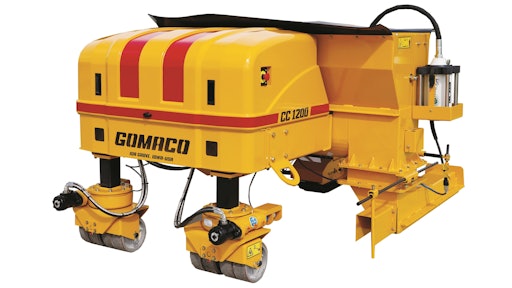

The CC-1200e Battery-Powered Curb Machine

In development for almost two years, GOMACO Corp's CC-1200e battery-powered slipform curb machine is equipped with a power dense 48 VDC lithium-ion battery pack capable to slipform a 24-in. (610 mm) radius, depending on the mold profile.

The CC-1200e Battery-Powered Curb Machine
GOMACO Corporation
GOMACO Swoosh 54c2cd8385045

In development for almost two years, GOMACO Corp's CC-1200e battery-powered slipform curb machine is equipped with a power dense 48 VDC lithium-ion battery pack. The result is a paver with zero-exhaust emissions, reduced vibrations, and zero engine noise. The lithium-ion batteries provide enough power for a full day of paving. Charging options include the standard eight to 10-hour normal charge rate or an optional two-hour fast charge system.

It features the simple-to-operate GOMACO-exclusive G+ control system with a full function radio remote control that puts all machine operations in the hands of the operator. Travel control, manual three-point grade control, cross auger directional controls, vibrator control dial, warning lights, and emergency stop are all located on the remote’s control panel. The CC-1200e is also equipped with rotary-sensored slew drive steering on its front wheel assemblies allowing smoother paving, easier control, and maximum turning capability with the ability to slipform a 24-in. (610 mm) radius, depending on the mold profile.

The compact curb machine has a 19 ft3 (0.54 m3) hopper capacity with up to 15 inches (381 mm) of horizontal sliding capabilities for easy alignment with ready-mix trucks. The hopper features a 12 inch (305 mm) diameter by 5.5 foot (1.68 m) long auger to move the concrete at variable speeds up to 43 rpm. Curb molds can be interchanged easily and can be positioned on either side of the CC-1200e for right-side or left-side paving. It is equipped with one variable speed electric vibrator that is coordinated with the stop switch to provide automatic on/off vibrator control synchronized with the forward travel of the paver.

The CC-1200e was built for mobility and navigating around job sites. It’s only 8.2 feet (2.5 m) long and 7.8 feet (2.38 m) wide. Its rear track and two front-wheel assemblies allow up to 93 feet per minute (28.3 mpm) auxiliary travel speed to move from one pour to the next or loading/unloading on a new project.
