Bigw 10085637

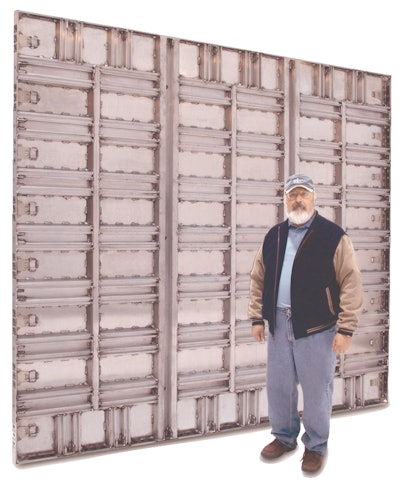

The Big W Panel System is a crane-set system designed to stack for tall-wall, high-rise projects.

  • Ideal for fire, sound barrier and retaining walls; commercial, multi-family and agricultural building; and mid-rise and high-rise structures
  • .125"-thick face sheet designed to handle pressures in excess of 1,250 lbs. per sq. ft.
  • Available in heights up to 8', 9', and 10', and in lengths from 8' to 16'
  • 6 lbs. per sq. ft.
  • Compatible with aluminum forming systems
  • Features include Lift Rings to eliminate "hook up" man, Center Spine that accepts tie patterns and locations necessary to fit your project, gasketed side rials and tie holes, and round taper ties or flat tie systems
