BC Bucket Crusher Line

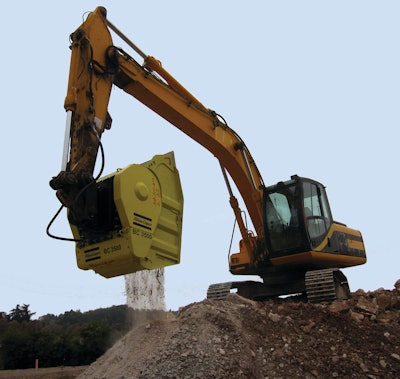

BC 3500 hydraulic bucket crusher
BC 3500 hydraulic bucket crusher
Epiroc

Use Atlas Copco's BC-model hydraulic bucket crushers to recycle asphalt, stone, concrete, mine, quarry and trench material. The rig-mounted bucket crushers are part of the Atlas Copco silent emolition tool range of hydraulic attachments.

  • Four new models: BC 1500, BC 2250, BC 3500 and BC 4900
  • Wide aperture bucket and large capacity
  • Output size adjusts from 0.5 to 4.75 in. or from 0.5 to 4 in. (BC 1500)
  • Bucket jaws can be inverted
  • Top and bottom jaws can be replaced or single jaws can be rotated 180 degrees for even wear and longer life
  • Two grease points for low maintenance level
  • Weight ranges from 3,307 to 10,803 lbs.
  • Use on carrier classes from 26,455 to 132,277 lbs.
  • Operating pressure minimum: 3,336 psi

BC 1500

  • Dimensions (WxLxH): 41 in. by 71 in. by 47 in.
  • Loading opening (LxH): 24 in. by 18 in.
  • Loading capacity: 0.6 cu. yd.

BC 2250

  • Dimensions (WxLxH): 43 in. by 82 in. by 49 in.
  • Loading opening (LxH): 28 in. by 22 in.
  • Loading capacity: 0.75 cu. yd.

BC 3500

  • Dimensions (WxLxH): 53 in. by 85 in. by 56 in.
  • Loading opening (LxH): 35 in. by 20 in.
  • Loading capacity: 1 cu. yd.

BC4900

  • Dimensions (WxLxH): 65 in. by 85 in. by 57 in.
  • Loading opening (LxH): 47 in. by 20 in.
  • Loading capacity: 1.3 cu. yd.
