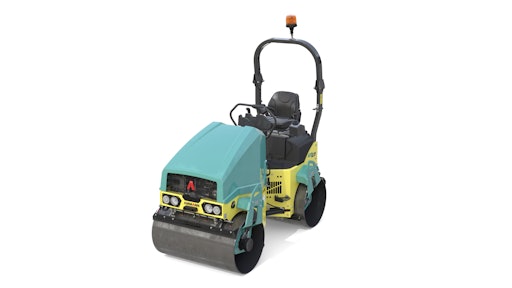

The ARX line of tandem rollers from Ammann feature a new Kubota D1703-M-DI engine that does not require any after-treatment technology to meet the latest Tier 4 Final emission standards. The updated rollers are the ARX 23.1-2 Stage V, the ARX 23.1-2C Stage V, the ARX 26.1-2 Stage V and the ARX 26.1-2C Stage V.
- Electronic drive lever for smooth starts and stops, especially important on asphalt jobs
- Spacious operator platform with sliding seat for comfort and visibility
- Simple and reliable dashboard with intuitive machine control, helping inexperienced operators succeed
- Accessible service and maintenance points for cost savings
- Maintenance-free parts for low cost of ownership
- Optional ACEforce, the Intelligent Compaction tool for optimal efficiency
- Working widths range from 1,000 mm to 1,200 mm. Weights range from 2 ton to 2.5 tons
- Applications include small and medium construction sites, city roads, boardwalks, city street repairs and road maintenance
- The “C” versions are combination machines that utilize a steel drum in front and four pneumatic tires in the rear
- Operating weight: 4,650 – 5,420 lbs
- Maximum weight: 5,090 – 5,850 lbs
- Drum width: 39.4–47.2 in
- Max working off-set mode: 1.57 in
- Engine: Kubota – 24.8 HP U.S. EPA Tier 4 final
