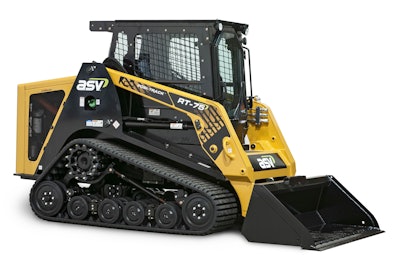

ASV’s large-frame, radial-lift RT-75 compact track loader features Posi-Track rubber track suspension, which provides high ground clearance, low ground pressure, optimal traction and long track life.
- 2,650-lb. rated operating capacity and a tipping load of 7,571 lbs.
- Cummins 2.8-liter, turbocharged, Tier 4 Final diesel engine produces 75 hp and 221 ft.-lbs. of torque
- Torque transferred to the ground through direct drive hydraulic motors
- Auxiliary hydraulic system includes 35.7-gpm high flow and 3,300 psi
- Dual-level suspension includes suspended wheels and axles, fully flexible track and multiple wheel contact points and triple-guide lugs for maximum performance on steep slopes
- Standard 18-in.-wide tracks result in a ground pressure of only 3.6 psi, while optional 20-in. tracks offer 3.2 psi
- Open rail and drive sprocket undercarriage design increases sprocket and bogie life and makes the undercarriage easier and faster to clean
- Nearly 15 in. of ground clearance
- Optional all-weather, pressurized cab with heat and air conditioning
- Available heavy-duty customization package (RT-75 Heavy-Duty) includes additional guarding, a hydraulically driven, auto-reversing cooling fan and optional factory installed full rear brush guard
