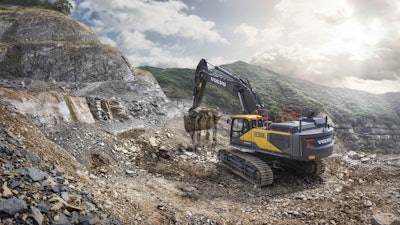

Volvo has entered the 50-ton class for excavators with the EC530E and EC550E, which it says have digging and lifting forces normally found in 60-ton machines.
According to the company, the EC530E is a true 50-ton excavator. Providing "the durability you would expect from a 60-tonner," this machine delivers 25% more fuel efficiency and 20% more productivity. Featuring new generation electrohydraulics, reliability and enhanced operator comfort, the unit is suited for heavy-duty digging, mass excavation and large site preparation.
Both the EC530E and EC550E are reported to feature the highest engine power in the class, providing high tractive force and swing torque. When coupled with large buckets, they are well-suited to fill articulated haulers in the 30- to 40-ton class with fewer passes to load them and reduced cycle times. The result is up to 20% more productivity.
“When Volvo CE enters a new size class, we want to meet the needs of our customers while also making an impression,” said Sejong Ko, product manager, excavators, at Volvo CE. “We’ve done that with the EC530E and EC550E excavators. Contractors get the power of a larger machine at a lower weight, along with additional fuel-saving and uptime-enhancing features.”
See it in action:

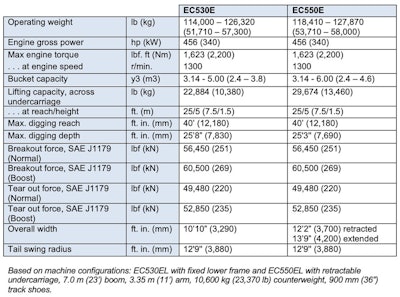

Specificiations:
- Operating weights range from 114,000 to 127,870 lbs.
- Power rating of 456 gross hp with 1,623 lbs.-ft. of max engine torque at 1,300 rpm
- Maximum digging depths of 25 ft. 8 in. and 25 ft. 3 in. and standard breakout force of 56,450 lbs.
- Super-rigid reinforced undercarriage supported by equally sturdy lower and upper frames
- Boom and arm boast a larger pin size for added strength
- Electrohydraulics system contributes to a 25% improvement in fuel efficiency due to Independent Metering Valve Technology (IMVT) with intelligent electronic control
- Include creep mode for precise lift-and-carry work and optional Comfort Drive Control (CDC) that enables steering with joystick rollers instead of pedals
- Feature selectable boom/swing and boom/travel priority, adjustable boom-down speed and boom-and-arm bounce reduction technology
- Optional Dig Assist machine control system powered by Volvo Co-Pilot
- Hydraulic pilot lines removed, reducing the number of couplings needed
- Engine oil change intervals increased to 1,000 hours when using Volvo VDS 4.5 oil
- Eligible for ActiveCare Direct advanced telematics service
Features:
- Reduce costs and boost profits in the EC530E. Features including new electro-hydraulic system with Independent Metering Valve Technology, Volvo attachments and operator training all contribute toward high efficiency delivered by this 50-tonne crawler excavator.
- The new generation electro-hydraulics with Independent Metering Valve Technology enable a range of intelligent functions, which take the operator experience to new levels, including creep mode, motion priority functions, reduced bouncing and optional Comfort Drive Control.
- Whether working inside or on the machine, features such as visibility and 3-point right-hand side access mean you can be sure that the highest levels of safety have been considered in every design detail of the EC530E.
- Reduced maintenance requirements, durable design and outstanding reliability means you can count on the EC530E to deliver optimum results – shift after shift, day after day.
