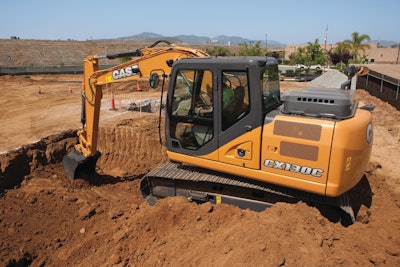

CX130C & CX160C Excavators

The Case CX130C and CX160C excavators replace the previous B Series models with up to 8% and 5% fuel economy increases, respectively. Compared to the previous B models, the CX130C provides a 4% increase in lift capacity while the CX160C provides a 2% increase. Both have a 440-lb. increase in operating weight.

• 100/124 net hp with Tier 4 Interim cooled exhaust gas recirculation engine
• Boom Economy Control lowers engine rpms during boom down and swing operation
• Auto Economy Control lowers rpms when joysticks are inactive
• Swing Relief Control manages hydraulic power allotted at start of the swing operation
• Spool Stroke Control creates automatic pressure adjustment during digging operations
• Blended hydraulic functions provide faster transition for lift/dump movements to dig/curl
• Three power modes: SP (speed priority), H (heavy duty) and A (automatic)
• 19% better visibility from the operator's seat
• In-cab auxiliary hydraulic setting system with option for 10 memory-recall settings
• Level 1 ROPS/FOPS

Spec Sheet: Case CX130C Excavator

Spec Sheet: Case CX160C Excavator
