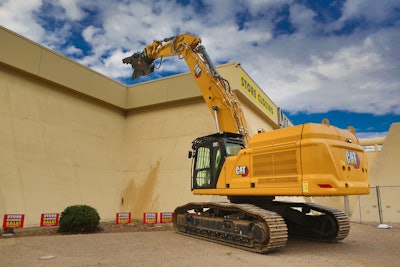

The new Cat 352 Straight Boom Excavator is designed for low-level demolition work up to five stories high, bridges and industrial infrastructure. Its stick-boom configuration delivers a higher vertical reach up to 12.85 m (42-ft., 2-in.) with 36% more stick pin height compared to the standard 352 reach configuration. Working with up to a 6,000-kg (13,228-lb.) attachment weight, the new 352 Straight Boom now features standard Cat technologies for versatility in both demolition and excavating applications.
The excavator’s new optional 11.35-ton (25,022-lb.) removable counterweight design supports transportation. The mechanical variable gauge undercarriage has a 2,990 mm (9-ft.,10-in.) transportation width when needed and extends 500 mm (19.7-in.) in working mode for stability. Its new hydraulic fan features standard automatic reverse to keep the cores free from debris and reduce maintenance time.
Operating Features
Designed for demolition, the 352 Straight Boom features reinforced booms, sticks and frame for machine durability. Standard Falling Object Guards (FOGS) protect the roof and front reinforced P5A laminated windows from falling debris during demolition, while helping maintain visibility of the jobsite. Sloped to prevent mud and debris accumulation, the track frame design helps reduce track damage, while sealed track pins and bushings reduce travel noise and supports undercarriage life. Full track guiding guard is also a standard feature.
Its Operator ID function offers push-button engine starting and programmable joystick functions that are remembered when the operator enters their unique ID. Standard Cat Stick Steer simplifies excavator movements with single-hand and push-button operation of travel and turning. Offering automatic power increase when needed, standard auto dig boost delivers more bucket penetration, shorter cycle times and greater payloads. Auto heavy lift offers more lifting power when needed. Cat Lift Assist makes the operator aware that the load is within the excavator’s safe working range to avoid tipping.
Standard Cat technologies to elevate operation include Cat Grade with 2D that displays depth and slope on the in-cab 254-mm (10-in.) touchscreen monitor. When excavating, Cat Payload offers real-time, onboard weight estimates to help achieve load targets. Payload can be combined with VisionLink for remote management of production targets, while Cat Product Link provides critical machine operating data like location, hours, fuel usage, productivity and diagnostic codes.
To detect objects and personnel around the operator in a single view, the 352 Straight Boom comes standard with rearview and right-hand-sideview cameras, which can be upgraded to provide 360-degree visibility. Small cab pillars, large windows, standard radial roof wiper and washer promote visibility around the machine. A durable seat, heated and cooled, is also standard.
Capable of powering through different types of material, the 352 Straight Boom features an electrohydraulic system and is powered by the 330-kW (443-hp) Cat C13B engine. Standard quick coupler, as well as medium and high-pressure circuits support operating versatility for using a variety of Cat demolition attachments. Three engine power modes – Smart, Power and Eco – help match engine and hydraulic power to the task at hand.
Maintenance
Harnessing technology, the new Cat 352 Straight Boom Excavator now offers remote diagnostics and updating capabilities. Remote Troubleshoot allows the dealer to diagnose fault codes and machine issues remotely without interrupting the production cycle. Remote Flash allows software updates to be pushed out to the machine and installed at a different time.
Grouped together for accessible maintenance, all fuel filters now feature an extended, synchronized 1,000-hour change interval.
Fuel, oil and air filters are available on the excavator; and hydraulic oil checks and fuel system purging of water are done from ground level. The operator can track filter life and maintenance intervals from inside the cab. The updated hydraulic system offers filtration performance, while anti-drain valves help keep the hydraulic oil clean when replacing the filter.
